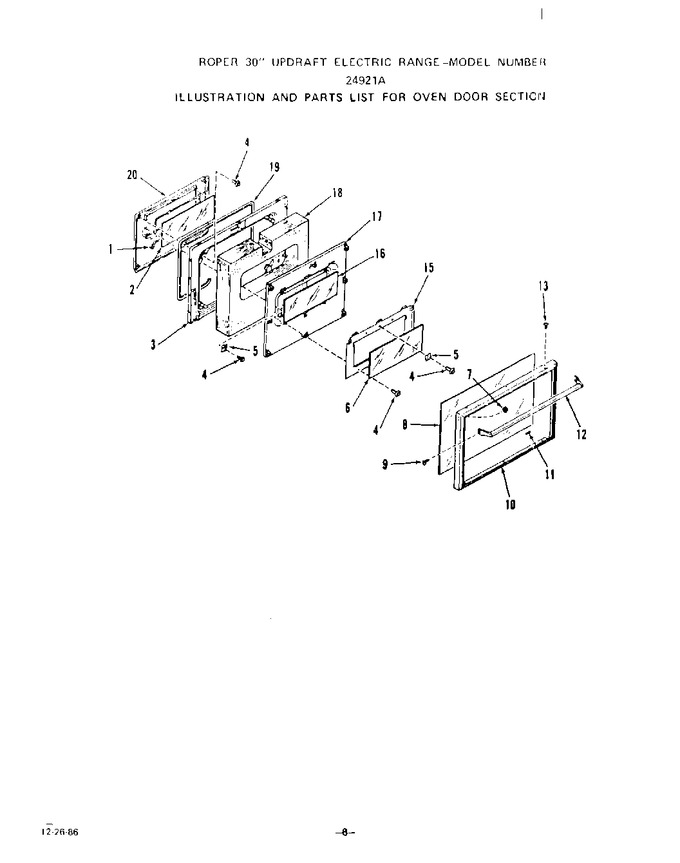

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302935		Seal-inner Glass		Appelez-nous	-
2	312428		Inner Glass		Appelez-nous	-
3	331948		Lining		Appelez-nous	-
4	327320		Screw 10-16x7/16``		Appelez-nous	-
5	326009		Glass Retainer		Appelez-nous	-
6	326088		Intermediate Glass		Appelez-nous	-
7	239764		Keps Nut 8-32		Appelez-nous	-
8	332664		Outer Glass		Appelez-nous	-
9	319447		Screw 8-32 X 1/2``		Appelez-nous	-
10	332433		Frame		Appelez-nous	-
11	112370		Cushion		Appelez-nous	-
12	303342		Handle		Appelez-nous	-
13	316849		Screw-10-32x1/2``		Appelez-nous	-
15	328615		Mounting Plate-glass		Appelez-nous	-
16	326632		Center Glass		Appelez-nous	-
17	331935		Insulation Retainer		Appelez-nous	-
18	334913		Insulation		Appelez-nous	-
19	292244		Xgasket		Appelez-nous	-
20	333951		Plug Door Lining		Appelez-nous	-
