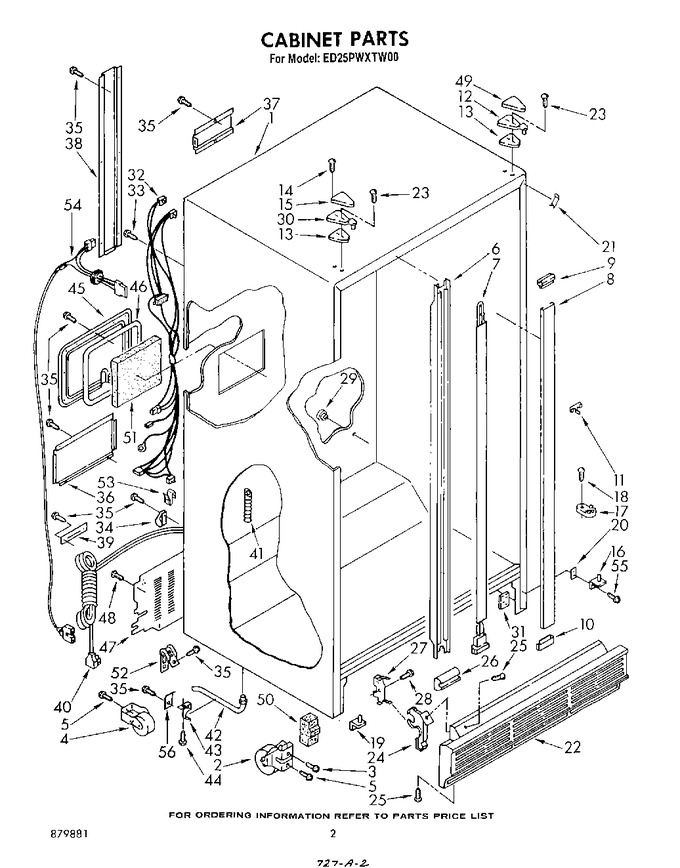

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981128		Front Roller (2)		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	488454		Screw, (4) 1/4-28 X 1/2		Appelez-nous	-
6	1118355		Mullion Rail		Appelez-nous	-
7	1110606		Heater Mullion		Appelez-nous	-
8	1110600		Front Mullion Rail (white)		Appelez-nous	-
8	1110602		Front Mullion Rail (golden Harvest)		Appelez-nous	-
8	1110604		Front Mullion Rail (toast)		Appelez-nous	-
8	1110605		Front Mullion Rail (platinum)		Appelez-nous	-
8	1110603		Front Mullion Rail (almond)		Appelez-nous	-
9	1118357		Filler Top Mullion (almond)		Appelez-nous	-
9	1118360		Filler Top Mullion (platinum)		Appelez-nous	-
9	1118359		Filler Top Mullion (toast)		Appelez-nous	-
9	1118358		Filler Top Mullion (golden Harvest)		Appelez-nous	-
9	1118356		Filler Top Mullion (white)		Appelez-nous	-
10	1118361		Filler Bottom Mullion (white)		Appelez-nous	-
10	1118365		Filler Bottom Mullion (platinum)		Appelez-nous	-
10	1118364		Filler Bottom Mullion (toast)		Appelez-nous	-
10	1118363		Filler Bottom Mullion (golden Harvest)		Appelez-nous	-
10	1118362		Filler Bottom Mullion (almond)		Appelez-nous	-
11	1110607		Clip, Ground		Appelez-nous	-
12	1100513		Shim, Hinge Top		Appelez-nous	-
13	1100509		Shim, Top Hinge		Appelez-nous	-
14	488915		Screw, 6-32 X 1/2		Appelez-nous	-
15	987191		Hinge Cover (white)		Appelez-nous	-
15	1100382		Hinge Cover (platinum)		Appelez-nous	-
15	1100381		Hinge Cover (toast)		Appelez-nous	-
15	989885		Hinge Cover (golden Harvest)		Appelez-nous	-
15	989887		Hinge Cover (almond)		Appelez-nous	-
16	1115900		Hinge, Bottom R.h.		Appelez-nous	-
17	WPW10329686		Door Closer Lower Cam (2)   (Replaces: 1115901)			Immediately	$ 5.43
18	WP486579		Screw, (2) 8-32 X 1/4   (Replaces: 487983)				$ 7.34
19	1115903		Hinge, Bottom (l.h.)		Appelez-nous	-
20	1105474		Spacer, Hinge		Appelez-nous	-
21	1110711		Filler, Wrapper (toast)		Appelez-nous	-
21	1110712		Filler, Wrapper (platinum)		Appelez-nous	-
21	1110709		Filler, Wrapper (almond)		Appelez-nous	-
21	1110710		Filler, Wrapper (golden Harvest)		Appelez-nous	-
21	1110708		Filler, Wrapper (white)		Appelez-nous	-
22	1118380		Grille		Appelez-nous	-
23	488949		Screw, 12-14 X 3/4		Appelez-nous	-
23	WP999367		Screw, (4) 10-32 X 23/32   (Replaces: 489105)				$ 7.86
24	WP944224		Grille Support (2)   (Replaces: 944224)				$ 7.56
25	489173		Screw, (4)		Appelez-nous	-
26	546131		Bumper, Grille (2)		Appelez-nous	-
27	989068		Grille Retainer		Appelez-nous	-
28	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
29	839989		Grommet		Appelez-nous	-
30	1115324		Hinge, Top (l.h.)		Appelez-nous	-
31	836162		Tap Plate (2)		Appelez-nous	-
32	1118268		Cabinet Harness		Appelez-nous	-
33	WP250830		Screw, Ground   (Replaces: 489048)				$ 7.95
34	937357		Clamp		Appelez-nous	-
35	WP489069		Screw   (Replaces: 693994)			Immediately	$ 7.86
36	1108442		Cover, Wiring		Appelez-nous	-
37	1108440		Wiring Shield, Short		Appelez-nous	-
38	1119063		Wiring Shield, Long		Appelez-nous	-
39	1105607		Tube Clamp (2)		Appelez-nous	-
40	937360		Cord, Service		Appelez-nous	-
41	842258		Drain Ferrule		Appelez-nous	-
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
44	488978		Screw		Appelez-nous	-
45	1110626		Cover, Plug		Appelez-nous	-
46	1115322		Sealing Gasket		Appelez-nous	-
47	1110664		Cover, Unit		Appelez-nous	-
48	WPW10141645		Screw, (6) 8 X 1/2   (Replaces: 489084)				$ 7.67
49	989194		Hinge Cover (almond)		Appelez-nous	-
49	842010		Hinge Cover (white)		Appelez-nous	-
49	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
49	1100172		Hinge Cover (toast)		Appelez-nous	-
49	1100173		Hinge Cover (platinum)		Appelez-nous	-
50	836372		Insert, Air Baffle		Appelez-nous	-
51	1118237		Insulation		Appelez-nous	-
52	549193		Clamp-service Cord				$ 13.39
53	548745		Clip, Wire		Appelez-nous	-
54	WP2187501		Wiring Assembly (icemaker)   (Replaces: 1118439)				$ 113.76
55	00489194		Screw, 10-32 X 23/32   (Replaces: 489194)				$ 255.17
55	488949		Screw (repair)		Appelez-nous	-
56	836472		Clamp, Water Line (2)		Appelez-nous	-
