Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4342634 Seal, Inner Glass Appelez-nous -
2 4331298 Glass, Inner Oven Door Appelez-nous -
3 4336704 Lining, Oven Door Appelez-nous -
4 WP681414 Screw 10-16x7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

5 4334791 Retainer Appelez-nous -
6 4334821 Glass, Intermediate Appelez-nous -
7 WP488130 Keps Nut No.8-32   (Replaces: 4325189) Special Order $ 6.59

8 4336860 Glass, Outer Appelez-nous -
9 4332885 Screw No.8-32x1/2 Appelez-nous -
10 4336813 Frame Appelez-nous -
11 4324217 Cushion Appelez-nous -
12 4328833 Handle, Handle Appelez-nous -
13 4332521 Screw No.10-32x1/2 Appelez-nous -
15 4335753 Mounting Plate, Glass Appelez-nous -
16 4335008 Glass, Center Appelez-nous -
17 4336703 Retainer, Insulation Appelez-nous -
18 4354940 Insulation, Appelez-nous -
19 4342564 Gasket, Door Appelez-nous -
20 4336939 Wire Harness (relay) Appelez-nous -
20 4337101 Plug, Door Lining Appelez-nous -
20 4336940 Wire Harness (sensor) Appelez-nous -
20 4336941 Wire Harness (control) Appelez-nous -
4347932 Xrepair Parts List Appelez-nous -
4347927 Xinstallation Guide Appelez-nous -
4347928 Xuse & Care Manual Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

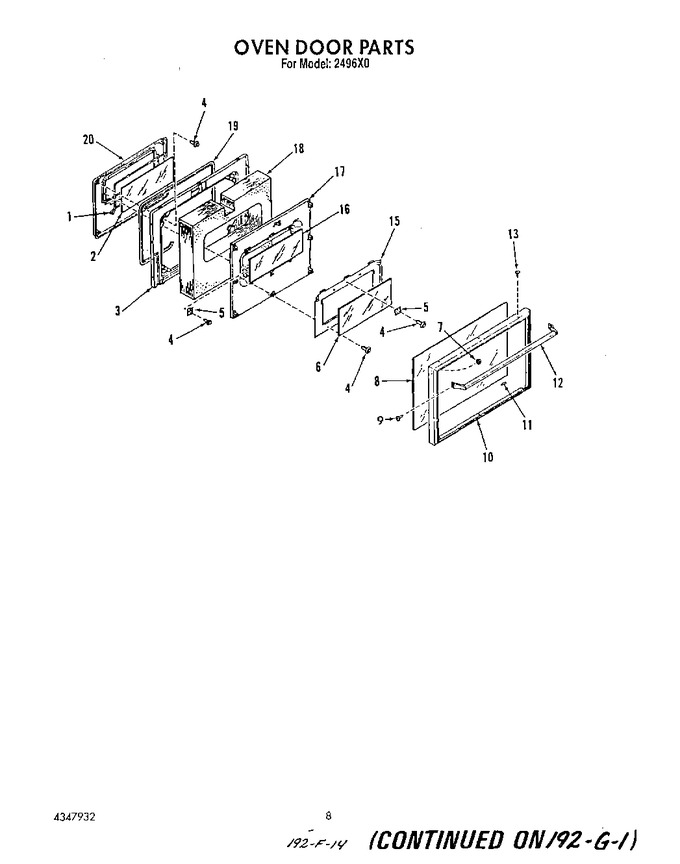

Diagram for 2496^0A
