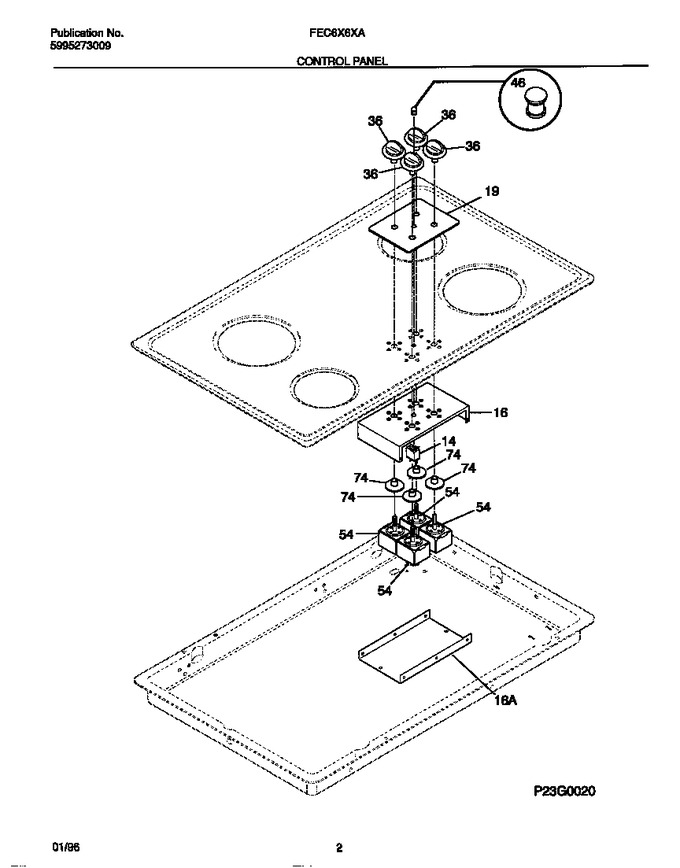

02 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5308008876 | Light-indicator (250 V) |
|
- | |||||
| 15 | 5303301460 | Element-surface, Large |
|
- | |||||
| 15 | 5303301459 | Element-surface, Small |
|
- | |||||
| 16 | 3200430 | Cover, Instrument Mtg. |
|
- | |||||
| 16 | 3200422 | Plate, Instrument Mtg |
|
- | |||||
| 16 | 5303299164 | Main Top, Chrome |
|
- | |||||
| 17 | 3016817 | Rod,maintop Support |
|
- | |||||
| 18 | 5303311269 | Hinge-main Top, (2) |
|
- | |||||
| 19 | 316048413 | Pan-surface Element, Large/8 Inch (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 19 | 316048414 | Pan-surface Element, Small / 6 Inch (Replaces: 5303280336) |
|
Immediately | $ 17.12 | ||||
| 19 | 5303299755 | Panel, Control |
|
- | |||||
| 27 | 5303935058 | Terminal Block Kit, Surface Element (Replaces: 5301167733) |
|
Immediately | $ 13.81 | ||||
| 28 | 5303301461 | Medallion, Surface Element |
|
- | |||||
| 36 | 5303299751 | Knob-surface Unit, (3) |
|
- | |||||
| 46 | 5303200418 | Lens-light/lamp, Indicator |
|
- | |||||
| 46 | 5303299250 | Burner Box |
|
- | |||||
| 54 | 5303935086 | Switch-surface Unit, (4) (Replaces: 318120504) |
|
Immediately | $ 51.95 | ||||
| 74 | 08007822 | Bushing, Switch |
|
- | |||||
| *70000 | 5303292005 | Screw-switch Mtg, 8-32 X 5/32, (2) |
|
- | |||||
| *70001 | 3051038 | Nut |
|
- | |||||
| *70002 | 5303300195 | Screw, Terminal Block |
|
- | |||||
| *70003 | 5303311366 | Conduit-cable |
|
- | |||||
| *70004 | 5303311532 | Screw, Back |
|
- |
