SELECT A DIAGRAM
01 - Cover

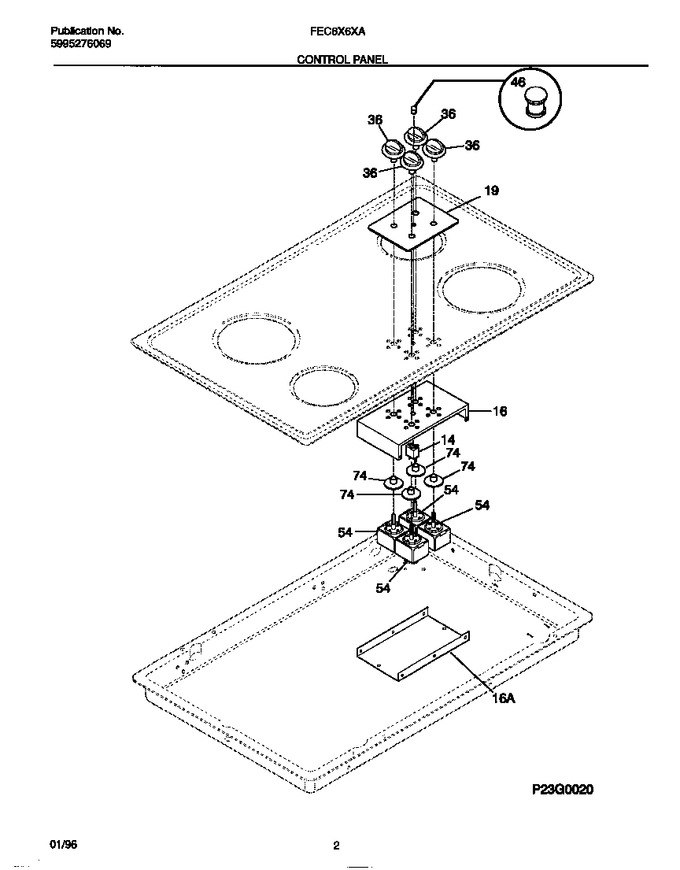

02 - Control Panel
03 - Body/top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | 5308008876 | Light-indicator (250 V) |
|
- | |||||
| 16 | 3200430 | Cover, Instrument Mtg. |
|
- | |||||
| 16 | 3200422 | Plate, Instrument Mtg |
|
- | |||||
| 19 | 5303299755 | Panel, Control |
|
- | |||||
| 36 | 5303299751 | Knob-control, (4) |
|
- | |||||
| 46 | 5303200418 | Lens-light/lamp, Indicator |
|
- | |||||
| 74 | 08007822 | Bushing, Switch |
|
- | |||||
| *02320 | 5303323137 | Screw-switch Mtg, Sw To Cntl Pnl, (6) (Replaces: 5303305528) |
|
$ 11.88 | |||||
| *02321 | 3051038 | Nut |
|
- | |||||
| 54A | 5303299752 | Switch-surface Unit, Small |
|
- | |||||
| 54B | 5303299753 | Switch-surface Unit, Large |
|
- |
