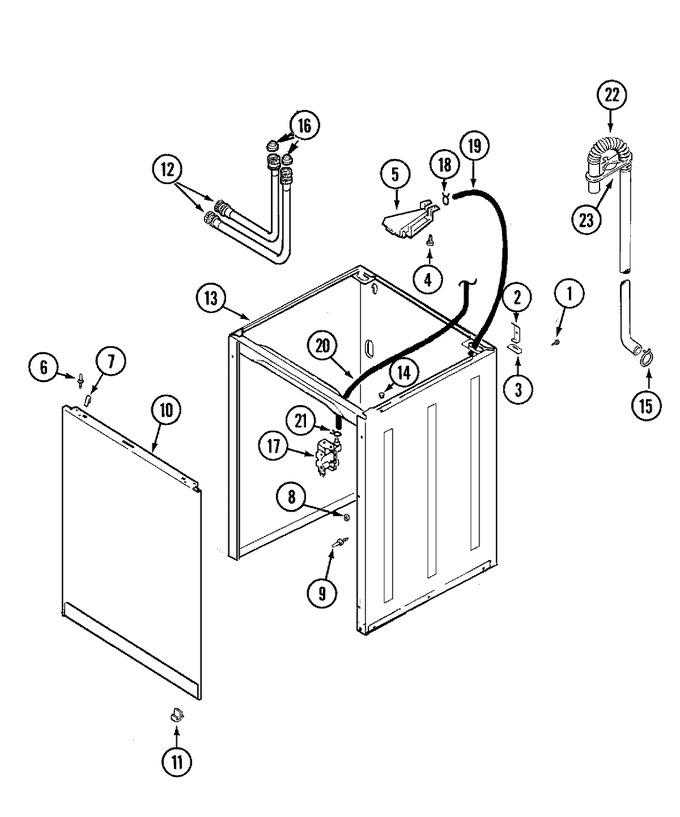

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP25-7893		Screw   (Replaces: 25-7893)	10			$ 8.73
2	35-2846		Hinge, Cabinet Top	10			$ 26.76
3	35-4128		Pad, Hinge	10	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 8.25
5	35-2051		Flume, Water Inlet	10	Appelez-nous	-
6	53-0643		Pin, Locator	10	Appelez-nous	-
7	WP25-7220		Clip, Cabinet Top   (Replaces: 25-7220)	10			$ 12.57
8	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	10		Immediately	$ 8.19
9	53-0200		Sleeve, Locator Pin	10	Appelez-nous	-
9	53-0643		Pin, Locator	10	Appelez-nous	-
10	21001281		Damper, Sound Pad	10	Appelez-nous	-
10	35-2084-24		Panel, Front (alm)	10	Appelez-nous	-
11	53-0120		Clip, Front Panel	10			$ 11.32
12	W11629055		Hose, Inlet   (Replaces: 35-0874)	10			$ 29.09
12	WP89503		Hose, 4` Inlet   (Replaces: 33-7891)	10		Immediately	$ 24.09
13	12001802		Kit, Cabinet/rear Shield (alm)	10	Appelez-nous	-
14	33-2653		Bumper, Cabinet	10	Appelez-nous	-
15	WP285655		Clamp, Discharge Hose   (Replaces: 25-7080)	10		Immediately	$ 8.81
16	33-4264N		Strainer & Washer Kit	10	Appelez-nous	-
17	35-2374N		Valve, Water (120v)   (Replaces: 21001396)	10			$ 323.07
18	WP596669		Clamp   (Replaces: 25-7867)	10		Immediately	$ 8.82
19	12002749		Hose, Flume/diverter (rubber)   (Replaces: 35-2378)	10			$ 30.30
20	21001749		Hose, Pressure Switch	10	Appelez-nous	-
21	WP596669		Clamp, Pressure Switch Hose   (Replaces: 25-7796)	10		Immediately	$ 8.82
22	WP21001872		Hose, Drain (no Cuff)   (Replaces: 21001513)	10			$ 98.51
23	22002701		Retainer, Drain Hose	10	Appelez-nous	-
