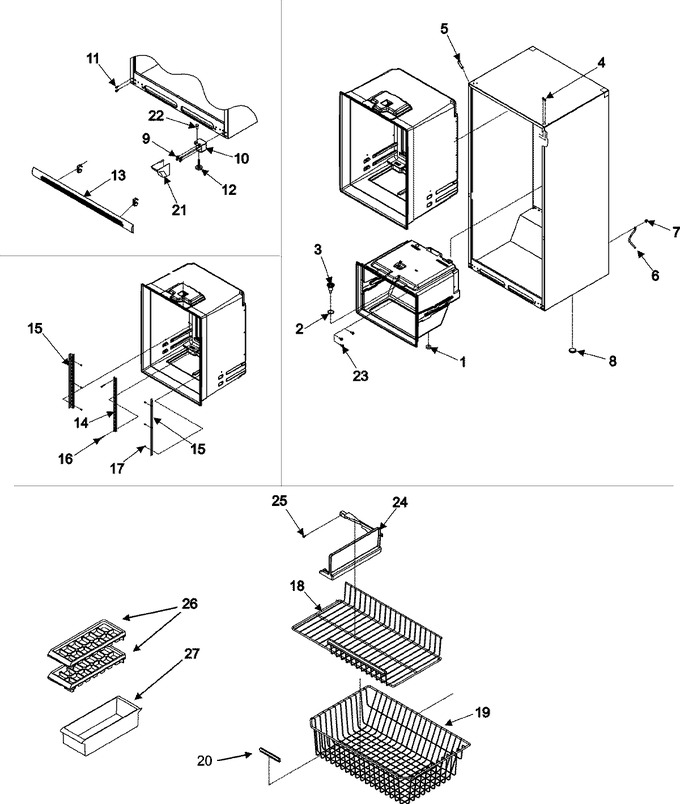

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPB8381501 | Gasket, Drain Tube (Replaces: B8381501) | 10 |
|
$ 7.78 | ||||
| 2 | WPM0500703 | Seal, O Ring (Replaces: M0500703) | 10 |
|
$ 11.47 | ||||
| 3 | W10815413 | Funnel, Drain (Replaces: D7753903) | 10 |
|
Immediately | $ 51.50 | |||
| 4 | A4539607 | Pop Rivet | 10 |
|
- | ||||
| 5 | 67003486 | Cover, Corner (bsq) | 10 |
|
- | ||||
| 6 | 67001066 | Tube, Drain | 10 |
|
$ 55.82 | ||||
| 7 | 67001067 | Clip, Drain Tube | 10 |
|
$ 9.66 | ||||
| 8 | A3076901 | Plug-button | 10 |
|
$ 5.70 | ||||
| 9 | 67003858 | Screw, Bottom Hinge | 10 |
|
- | ||||
| 10 | 67001069 | Hinge, Bottom E-ct (wht) | 10 |
|
- | ||||
| 11 | WP67006715 | Screw (Replaces: M0233847) | 10 |
|
$ 7.55 | ||||
| 12 | W11177593 | Brake, Foot (Replaces: 10354001) | 10 |
|
$ 12.18 | ||||
| 13 | 12627302 | Clip, Toe Grille | 10 |
|
$ 5.84 | ||||
| 13 | 67003845 | Toe Grille Assy (bsq) | 10 |
|
- | ||||
| 14 | 67001073 | Ladder, Center | 10 |
|
$ 56.89 | ||||
| 15 | 67001302 | Ladder, Sides | 10 |
|
- | ||||
| 16 | W10709795 | Screw (Replaces: M0231425) | 10 |
|
$ 13.79 | ||||
| 17 | 67006425 | Screw, Sm (Replaces: M0238642) | 10 |
|
Immediately | $ 7.30 | |||
| 18 | 67003470 | Shelf, Glide 30`` | 10 |
|
- | ||||
| 19 | WP12754803 | Basket, Lower 30`` X (Replaces: 67003329) | 10 |
|
$ 267.02 | ||||
| 20 | 10508506 | Handle, Basket/shelf | 10 |
|
- | ||||
| 21 | 12561901C | Cover, Lwr Hinge (bsq) | 10 |
|
- | ||||
| 22 | M0310343 | Plug, Button (wht) | 10 |
|
$ 11.20 | ||||
| 23 | 67006425 | Screw, Sm (Replaces: M0238616) | 10 |
|
Immediately | $ 7.30 | |||
| 24 | 67004127 | Divider, Basket (upper) | 10 |
|
$ 10.10 | ||||
| 25 | 67001310 | Screw | 10 |
|
- | ||||
| 26 | WP841180A | Tray, Ice Cube (Replaces: D7725402S) | 10 |
|
Immediately | $ 47.84 | |||
| 27 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 |
