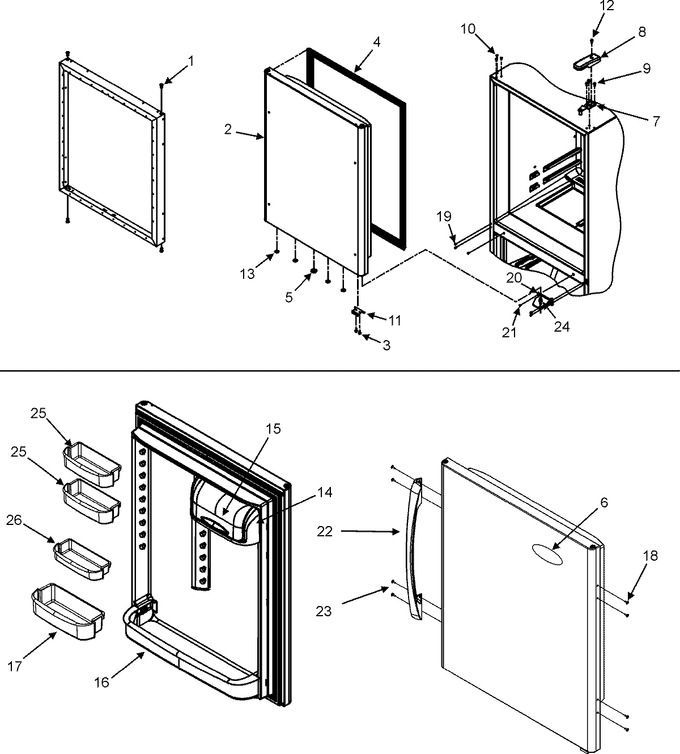

Diagram #	Part Number	Description	Series	Availability	Ships	Price
1	67004978	Bushing, Door (blk)	10			$ 21.05
2	67006031	Door Assy., Ref. Foam (blk)	10	Appelez-nous	-
3	WPW10348409	Screw, Mounting (Replaces: M0211533)	10		Immediately	$ 7.76
4	WPW10436245	Gasket, Ref Door (blk) (Replaces: 67003549)	10			$ 345.10
5	A3080001	Plug, Button (blk)	10	Appelez-nous	-
6	67005429	Nameplate (blk)	10	Appelez-nous	-
7	WP12566606ED	Hinge, Top (blk) (Replaces: 67001011)	10		Immediately	$ 44.89
8	67001012	Cover, Top Hinge (blk)	10			$ 47.34
9	R9800670	Screw, Tf (Replaces: M0238731)	10			$ 9.38
10	WP12246608	Plug, Top Hinge Button (blk) (Replaces: M0310731)	10		Immediately	$ 7.76
11	W11708403	Stop, Door (blk) (Replaces: 67003780)	10		Immediately	$ 14.05
12	WP8281196	Screw-mach (Replaces: M0202327)	10		Immediately	$ 7.19
13	67004838	Plug, Vent (blk)	10			$ 10.68
14	WP67001279	Tray, Dairy (Replaces: 67001279)	10		Immediately	$ 83.82
15	WP67003637	Door, Dairy (Replaces: 67003637)	10		Immediately	$ 78.73
16	67001139	Retainer, Door (Replaces: 67001296)	10		Immediately	$ 99.80
17	WP67001021	Bucket, Med Ref Door (Replaces: 67001021)	10			$ 80.90
18	WP12246608	Plug, Handle Hole (blk) (Replaces: 12246603)	10		Immediately	$ 7.76
19	WP489349	Screw, Tf (Replaces: M0239730)	10		Immediately	$ 7.88
20	WP12607104ED	Hinge, Center (blk) (Replaces: 67001167)	10			$ 152.73
21	W11573362	Screw, T. F. (Replaces: M0226233)	10			$ 14.02
22	67005387	Handle Assy., Ref Door (blk)	10	Appelez-nous	-
23	67006806	Screw, Hi Torque (blk) (Replaces: 67004709)	10			$ 13.35
24	WP67006642	Pin, Center Hinge (Replaces: 67002734)	10			$ 7.93
25	67001141	Bucket, Small Ref Dr	10		Immediately	$ 75.15
26	67004840	Bucket, Short Ref Door	10	Appelez-nous	-
