SELECT A DIAGRAM

02 - Cook Top


03 - Oven


04 - Blower Unit

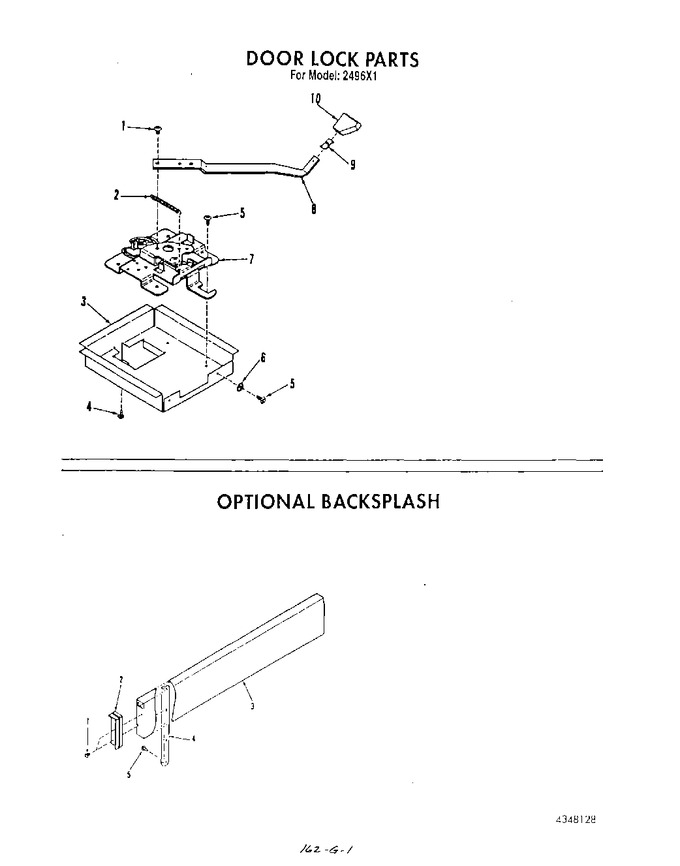

05 - Door Lock , Optional Backsplash


06 - Oven Door


07 - Electric Grill Module , Electric


08 - Griddle , Griddle/grill Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4326551		Screw, No.10-24 X 1/4		Appelez-nous	-
2	4331536		Spring		Appelez-nous	-
3	4336705		Box, Mounting		Appelez-nous	-
4	4336048		Screw 6-20x3/8		Appelez-nous	-
5	WP681414		Screw 10-16x7/16   (Replaces: 4335248)			Immediately	$ 7.62
6	4323206		Washer		Appelez-nous	-
7	4337490		Lock Assembly, (inc`s Illus. No.2)		Appelez-nous	-
8	4336811		Handle, Lock		Appelez-nous	-
9	4335705		Clip		Appelez-nous	-
10	4335706		Knob, Lock		Appelez-nous	-
A1	4335339		Screw No.6-32x3/8		Appelez-nous	-
A2	4336262		Cap, End		Appelez-nous	-
A3	4337259		Backsplash		Appelez-nous	-
A4	4337258		Support, Backsplash		Appelez-nous	-
A5	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62

    View Diagram in Separate Window       Print Part List
