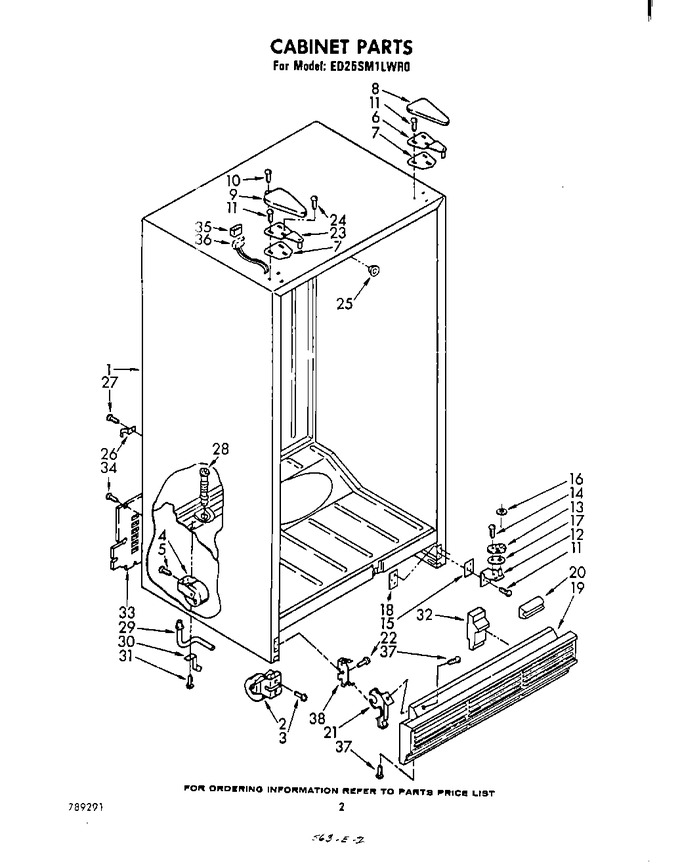

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	981127		Roller, Front		Appelez-nous	-
3	488681		Screw, 5/16-24 X 1		Appelez-nous	-
4	WPW10250570		Roller, Rear   (Replaces: 981122)				$ 42.18
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	842039		Hinge, Top		Appelez-nous	-
7	992854		Shim, Hinge Top		Appelez-nous	-
8	1100173		Hinge Cover (platinum)		Appelez-nous	-
8	842010		Hinge Cover (white)		Appelez-nous	-
8	989895		Hinge, Cover (coffee)		Appelez-nous	-
8	989896		Hinge Cover (golden Harvest)		Appelez-nous	-
8	989194		Hinge Cover (almond)		Appelez-nous	-
8	1100172		Hinge Cover (toast)		Appelez-nous	-
9	1100381		Hinge Cover (toast)		Appelez-nous	-
9	987191		Hinge Cover (white)		Appelez-nous	-
9	989884		Hinge Cover (coffee)		Appelez-nous	-
9	989885		Hinge Cover (golden Harvest)		Appelez-nous	-
9	989887		Hinge Cover (almond)		Appelez-nous	-
9	1100382		Hinge Cover (platinum)		Appelez-nous	-
10	488915		Screw, 6-32 X 1/2		Appelez-nous	-
11	488949		Screw (repair)		Appelez-nous	-
11	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 8.56
12	986763		Hinge Bottom (r.h)		Appelez-nous	-
12	986764		Hinge Bottom (l.h)		Appelez-nous	-
13	WPW10329686		Door Closer, Cam   (Replaces: 986759)			Immediately	$ 5.90
14	488913		Screw (repair)		Appelez-nous	-
14	WP486579		Screw, 8-32 X 1/4   (Replaces: 487983)				$ 7.89
15	836196		Shim, Hinge Bottom		Appelez-nous	-
16	WP487802		Washer   (Replaces: 488723)			Immediately	$ 7.91
17	987179		Shim, Door Closer		Appelez-nous	-
18	836162		Tap Plate, Bottom		Appelez-nous	-
19	944269		Exterior, Grille (white)		Appelez-nous	-
19	944271		Exterior, Grille (golden Harvest)		Appelez-nous	-
19	944270		Exterior, Grille (coffee)		Appelez-nous	-
19	1101422		Exterior, Grille (platinum)		Appelez-nous	-
19	1101421		Exterior, Grille (toast)		Appelez-nous	-
19	944273		Exterior, Grille (almond)		Appelez-nous	-
20	546131		Bumper, Grille		Appelez-nous	-
21	WP944224		Grille Support   (Replaces: 944224)				$ 7.94
22	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
23	983608		Hinge, Top Freezer		Appelez-nous	-
24	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 7.08
25	839989		Grommet		Appelez-nous	-
26	836472		Tube, Clamp		Appelez-nous	-
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
28	982904		Drain Fitting, Liner		Appelez-nous	-
29	841646		Extension, Drain Fitting		Appelez-nous	-
30	841648		Cup, Drain Extension		Appelez-nous	-
31	488978		Screw, 8-15 X 3/8		Appelez-nous	-
32	836372		Insert, Air Baffle		Appelez-nous	-
33	1101165		Cover, Unit Compartment		Appelez-nous	-
34	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
35	851648		Receptacle, Head		Appelez-nous	-
36	482553		Harness, Wiring (6`` Leads)		Appelez-nous	-
37	489085		Screw, 8-22 X 5/16		Appelez-nous	-
38	989068		Clip, Grille		Appelez-nous	-
