Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/A Liner (not A Serviceable Part) Appelez-nous -
2 935613 Break Mullion, Frame Appelez-nous -
3 1101403 Mullion, Front (toast) Appelez-nous -
3 935614 Mullion, Front (white) Appelez-nous -
3 935615 Mullion, Front (coffee) Appelez-nous -
3 935616 Mullion, Front (golden Harvest) Appelez-nous -
3 935618 Mullion, Front (almond) Appelez-nous -
3 1101404 Mullion, Front (platinum) Appelez-nous -
4 935620 Heater, Mullion Appelez-nous -
5 935619 Mullion, Bracket Appelez-nous -
6 WP488729 Screw, 8 X 1/2   (Replaces: 487900) In-Stock Immediately $ 7.79

6 WP308685 Screw (repair)   (Replaces: 488258) In-Stock Immediately $ 7.87

7 538532 Screw Grommet Appelez-nous -
8 538533 Support Clip Appelez-nous -
9 WP681414 Screw, 10-12 X 3/8   (Replaces: 488552) In-Stock Immediately $ 7.85

10 519890 Hole, Plug Appelez-nous -
11 848433 Control Connector & Gasket Assembly Appelez-nous -
12 WP488163 Screw, 8 X 13/16   (Replaces: 488208) Special Order $ 7.54

13 851020 Grommet, Wiring Appelez-nous -
14 984101 Escutcheon Meat Appelez-nous -
15 984102 Slide Meat Pan, Cold Control Special Order $ 5.02

16 992358 Pad, Foam Appelez-nous -
17 537095 Expansion Clip Appelez-nous -
18 486214 Screw 8-15 X 1/2 Appelez-nous -
19 988458 Track, Divider (top) Appelez-nous -
19 1103303 Track, Divider (back & Bottom) Appelez-nous -
20 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.02

21 935666 Retainer Bracket, Divider Appelez-nous -
22 WP681414 Screw, 10 X 1/2   (Replaces: 488908) In-Stock Immediately $ 7.85

23 1103361 Divider, Mullion Appelez-nous -
24 843888 Retainer, Hole Insert Appelez-nous -
25 843887 Insert, Hole Appelez-nous -
28 987054 Shield, Divider Appelez-nous -
29 992041 Breaker, Trim Top Refrigerator Appelez-nous -
30 935637 Breaker Trim, (r.s.) Refrigerator Appelez-nous -
31 992044 Breaker Trim, Bottom Refrigerator Appelez-nous -
32 836090 Breaker Retainer Appelez-nous -
33 838849 Breaker Trim, Clip Appelez-nous -
34 937668 Breaker Trim, Bottom Clip Appelez-nous -
35 992047 Breaker Trim, Top Freezer Appelez-nous -
36 935643 Breaker Trim, Freezer (l.s.) Appelez-nous -
37 939829 Breaker Trim, Freezer (bottom) Appelez-nous -
38 WP4387911 Switch, Rocker Arm   (Replaces: 851387) In-Stock Immediately $ 39.66

39 W11384469 Rocker Arm Switch   (Replaces: 549702) In-Stock Immediately $ 37.23

40 934475 Heater, Stile Appelez-nous -
41 937205 Stile Clip, Retainer Appelez-nous -
42 1103312 Cover, Heat Exchanger Appelez-nous -
43 983605 Heat Exchanger, Clip Appelez-nous -
44 481782 Harness, Cabinet Wiring (defrost Timer) Appelez-nous -
45 481658 Harness, Cabinet Wiring (ice Maker) Appelez-nous -
46 842339 Grommet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

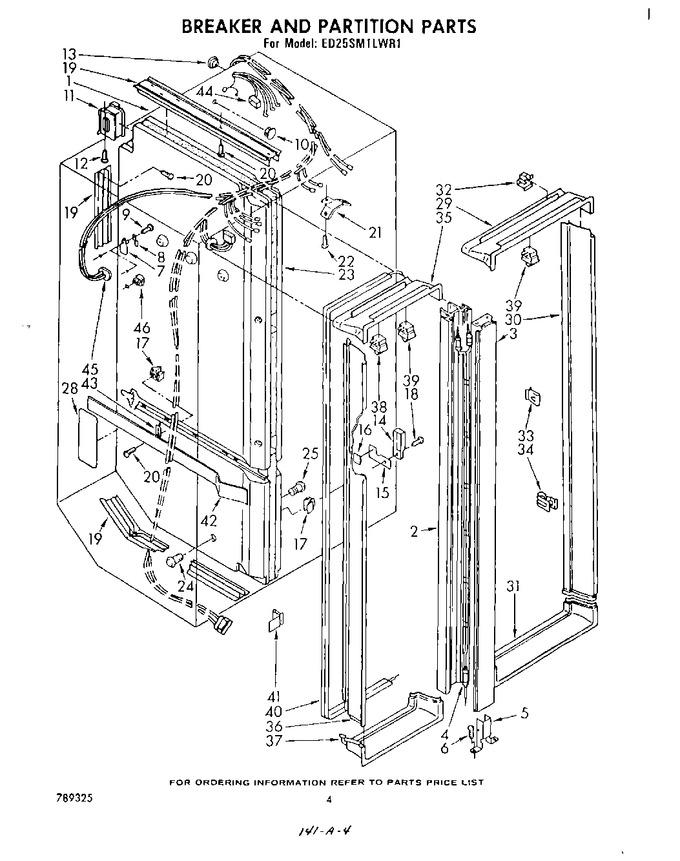

Diagram for ED25SM1LWR1
