Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2215823 Clip, Air Duct   (Replaces: 842534) Special Order $ 10.42

2 983660 Support, Stud Appelez-nous -
3 992720 Support, Stud Appelez-nous -
4 843436 Grommet Appelez-nous -
5 W10823511 Tube, Water   (Replaces: 944681) In-Stock Immediately $ 32.41

6 WP2256126 Water Reservoir   (Replaces: 839912) Special Order $ 168.85

7 W10823511 Tube, Water   (Replaces: 988220) In-Stock Immediately $ 32.41

8 4387491 Insert, Tube   (Replaces: 841707) Special Order $ 7.84

9 00753257 ``o`` Ring Seal   (Replaces: 488819) In-Stock Immediately $ 295.49

10 488795 Nut, Compression Appelez-nous -
11 488775 Screw, 8 X 1-1/2 Appelez-nous -
12 989716 Bracket, Ice Dispenser Appelez-nous -
13 851152 Motor, Ice Dispenser Appelez-nous -
14 303776 Screw, 8-32 X 5/16   (Replaces: 488906) Appelez-nous -
15 WPW10169511 Coupling, Motor   (Replaces: 983663) Special Order $ 23.34

16 4387478 Socket Assembly   (Replaces: 851067) In-Stock Immediately $ 110.16

17 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.02

18 989715 Cover, Ice Dispenser Appelez-nous -
19 00487294 Screw, 8-32 X 3/8   (Replaces: 487294) Special Order $ 175.09

20 983359 Light Lens, Dispenser Appelez-nous -
21 8009 Light Bulb   (Replaces: 527949) In-Stock Immediately $ 18.67

22 983651 Duct, Air Appelez-nous -
23 946697 Baffle, Air Appelez-nous -
24 983652 Air Deflector Appelez-nous -
25 SM999 Fan, Motor   (Replaces: 945523) In-Stock Immediately $ 30.26

26 992920 Blade, Fan Special Order $ 39.91

27 00487887 Screw, 3-48 X 1/4   (Replaces: 487887) Special Order $ 244.80

28 548263 Fan, Bracket Double Appelez-nous -
29 938224 Fan Bracket, Single Appelez-nous -
30 548268 Fan, Grommet Appelez-nous -
31 538449 Screw Grommet Appelez-nous -
32 WP489069 Screw, 8 X 1/2   (Replaces: 488772) In-Stock Immediately $ 7.86

33 983650 Scroll Fan Appelez-nous -
34 939729 Cover, Evaporator Appelez-nous -
35 848445 Grommet Appelez-nous -
36 WP488729 Screw, 8-15 X 1/2   (Replaces: 488992) In-Stock Immediately $ 7.79

37 983649 Gasket, Evaporator Cover Appelez-nous -
38 987178 Gasket, Cover Top Appelez-nous -
39 934121 Pan, Drain Appelez-nous -
40 836088 Fitting, Drain Pan Appelez-nous -
41 934130 Gasket, Drain Pan Appelez-nous -
42 842259 Cap, Drain Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

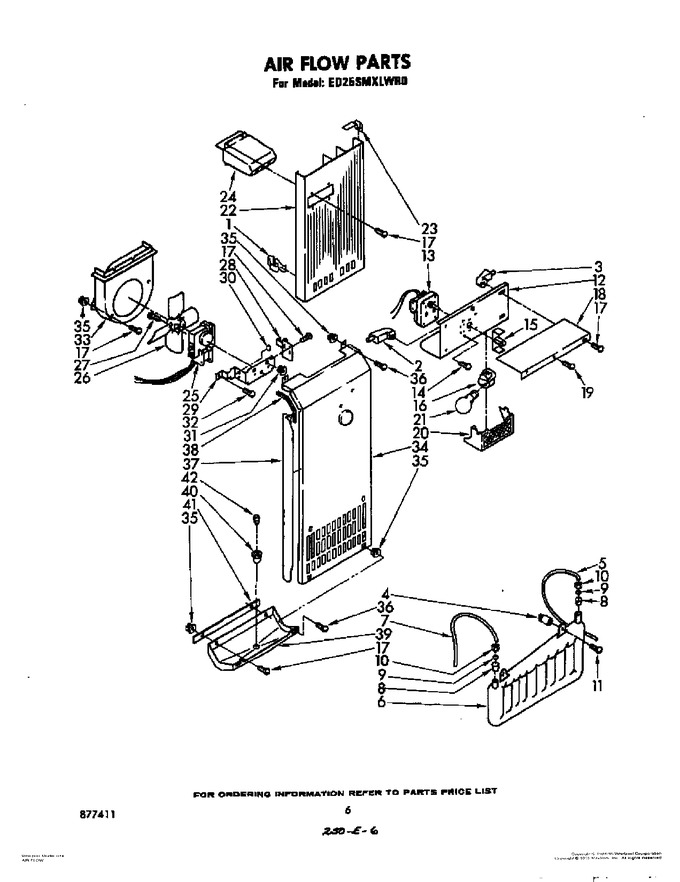

Diagram for ED25SMXLWR0
