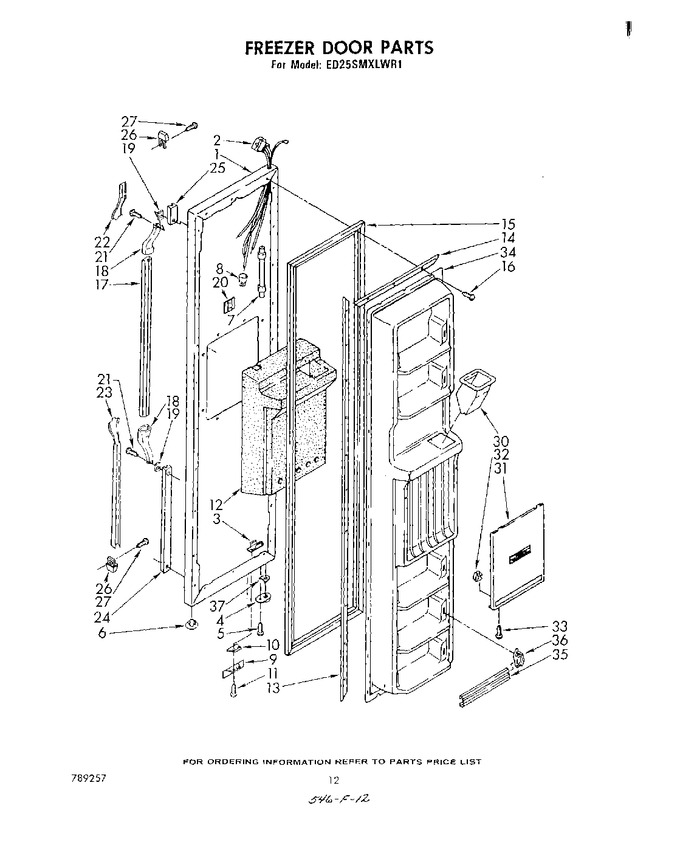

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101424		Exterior Door Panel Freezer (platinum)		Appelez-nous	-
1	941915		Exterior Door Panel Freezer (almond)		Appelez-nous	-
1	941913		Exterior Door Panel Freezer (golden Harvest)		Appelez-nous	-
1	941912		Exterior Door Panel Freezer (coffee)		Appelez-nous	-
1	941911		Exterior Door Panel Freezer (white)		Appelez-nous	-
1	1101423		Exterior Door Panel Freezer (toast)		Appelez-nous	-
2	851373		Plug, Crossover		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 27.36
5	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 7.86
6	534927		Hole Plug		Appelez-nous	-
7	991415		Tube, Door Wiring		Appelez-nous	-
8	227991		Wire Connector		Appelez-nous	-
9	988420		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488549		Screw, 89 X 5/8		Appelez-nous	-
12	983679		Insulation, Dispenser		Appelez-nous	-
13	982887		Retainer, Gasket Side		Appelez-nous	-
14	983643		Retainer, Gasket Top & Bottom		Appelez-nous	-
15	944470		Door Gasket, Magnetic		Appelez-nous	-
15	939342		Door Gasket, Magnetic (for Platinum Model Only)		Appelez-nous	-
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
16	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 7.86
17	1101369		Handle, Center (toast)		Appelez-nous	-
17	1101370		Handle, Center (platinum)		Appelez-nous	-
17	944376		Handle, Center (white & Coffee)		Appelez-nous	-
17	944377		Handle, Center (almond)		Appelez-nous	-
17	935093		Handle, Center (golden Harvest)		Appelez-nous	-
18	935103		Center End Cap, Handle		Appelez-nous	-
19	935075		Shim, Handle Center		Appelez-nous	-
20	941242		Screw Anchor		Appelez-nous	-
21	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.79
22	941298		Insert, Handle		Appelez-nous	-
23	941263		Insert, Handle		Appelez-nous	-
24	941262		Retainer Insert (bottom)		Appelez-nous	-
25	941297		Retainer Insert (top)		Appelez-nous	-
26	941259		End Cap		Appelez-nous	-
27	489075		Screw, 10-32 X 5/8		Appelez-nous	-
30	944472		Chute, Ice		Appelez-nous	-
30	987188		Ice Chute (for Platinum Model Only)		Appelez-nous	-
31	985550		Overlay, Ice Dispenser		Appelez-nous	-
32	537095		Expansion Clip		Appelez-nous	-
33	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 7.79
34	945133		Interior, Door Panel		Appelez-nous	-
34	1101428		Interior Door Panel (for Platinum Model Only)		Appelez-nous	-
35	935969		Trim, Door Shelf		Appelez-nous	-
36	943125		Retainer, Door Trim		Appelez-nous	-
36	839904		Retainer, Door Trim (for Platinum Model Only)				$ 5.65
37	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.58
