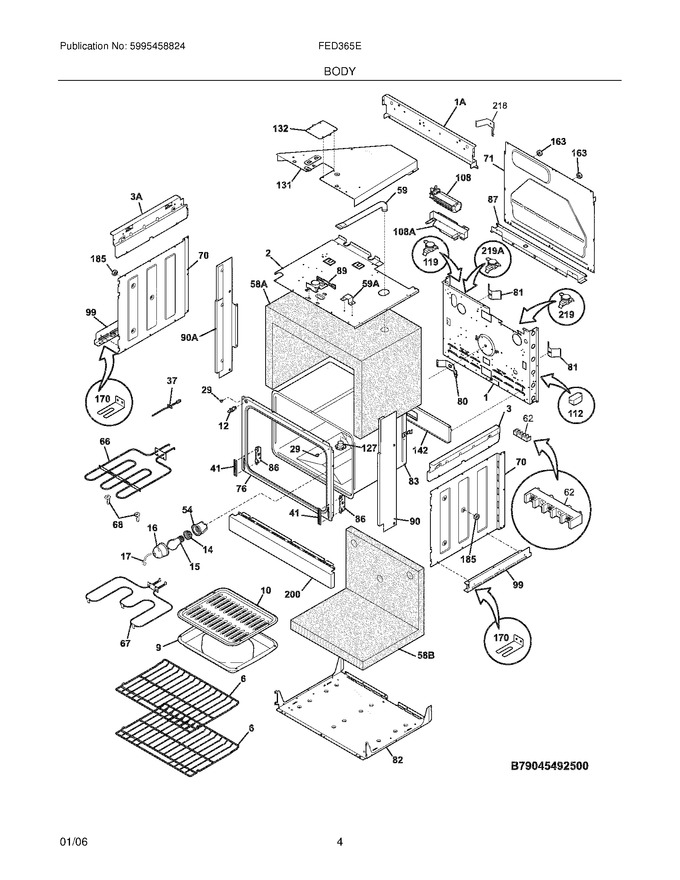

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259202		Back,main		Appelez-nous	-
2	318258902		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
6	318262502		Rack,oven		Appelez-nous	-
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 62.33
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Cover,oven Light ,glass   (Replaces: 3201911)			Immediately	$ 19.07
17	5304400195		Retainer,light Cover		Appelez-nous	-
29	318147430		Bumper,(2)   (Replaces: 318147411)				$ 21.06
41	5303310526		Cover-hinge Cutout				$ 83.00
54	318222400		Housing,oven Light				$ 58.22
59	318072560		Duct,oven Vent		Appelez-nous	-
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255605		Element,broil ,2750w   (Replaces: 318255600)			Immediately	$ 214.20
68	5304403015		Support,hanger ,(2) ,broil Element				$ 38.93
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056217		Front,oven				$ 143.06
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258707		Shield,insulation ,lower				$ 108.24
83	318261403		Liner,oven Assy		Appelez-nous	-
86	5303310524		Receptacle,hinge		Appelez-nous	-
90	318296926		Panel,filler ,bisque ,rh		Appelez-nous	-
99	318256200		Bracket,side ,bottom ,(2)		Appelez-nous	-
127	318317100		Adapter Assembly,vent Tube ,w/converter				$ 83.48
131	318272900		Box,vent		Appelez-nous	-
132	318003000		Plate,shield		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
163	318531702		Spacer,(6)   (Replaces: 318014110)				$ 11.03
170	318334900		Anti-glide & Accessories		Appelez-nous	-
185	318165800		Spacer,(2)				$ 19.69
200	318330002		Trim,door Opening ,bisque ,bottom		Appelez-nous	-
218	318054700		Plate,anti-tip		Appelez-nous	-
1A	318225110		Panel,main Back ,upper				$ 63.05
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318285055		Insulation,oven Wrapper		Appelez-nous	-
58B	318285056		Insulation,oven Back				$ 76.53
59A	318261600		Bracket,vent Tube		Appelez-nous	-
90A	318296927		Panel,filler ,bisque ,lh		Appelez-nous	-
F108	318073028		Motor,blower   (Replaces: 318073018)				$ 301.88
F108	318251300		Bracket,fan Support				$ 54.60
F112	318112703		Relay				$ 66.99
F119	318005202		Switch,thermal Cutout			Immediately	$ 138.19
F12	318394803		Switch,light   (Replaces: 318089913)			Immediately	$ 49.14
F219	318003614		Thermostat,safety			Immediately	$ 94.01
F219	318003624		Thermostat,safety   (Replaces: 318003613)			Immediately	$ 25.99
F37	316217002		Probe,oven Temp			Immediately	$ 68.03
F67	318255401		Element,bake ,3400w			Immediately	$ 240.64
F89	318261230		Motor,latch Assy   (Replaces: 318261202)				$ 144.22
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 16.01
NI	318078526		Box & Wires Assy		Appelez-nous	-
NI	318224927		Harness,wiring ,main		Appelez-nous	-
NI	318175510		Screw-leveling   (Replaces: 318175503)			Immediately	$ 26.96
NI	3051050		Screw-shoulder				$ 12.29
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.84
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 16.54
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 15.75
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 12.60
