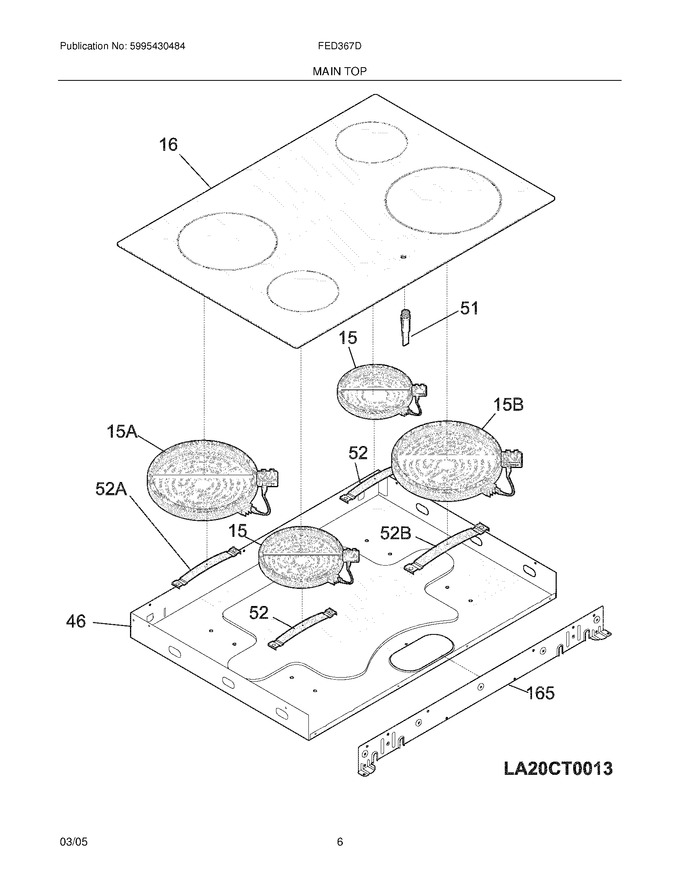

07 - Maintop
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318223602 | Main Top,glass Assy. ,black |
|
$ 733.22 | |||||
| 46 | 318225401 | Box,burner |
|
- | |||||
| 52 | 318122006 | Spring,element Mtg ,small |
|
$ 73.61 | |||||
| 165 | 318227502 | Plate,mounting |
|
- | |||||
| 52A | 318122007 | Spring,element Mtg ,large |
|
$ 53.45 | |||||
| 52B | 318122010 | Spring,element Mtg ,1000w/2500w |
|
$ 69.46 | |||||
| F15 | 318198817 | Element,surface ,small/6`` ,1200 W |
|
Immediately | $ 214.20 | ||||
| F15A | 903118-9010 | Element,surface ,large/8`` ,2200 W (Replaces: 318198818) |
|
Immediately | $ 262.42 | ||||
| F15B | 318198819 | Element,surface ,9`` ,2500 W |
|
$ 256.01 | |||||
| F51 | 318044827 | Light,indicator ,clear (Replaces: 318044822) |
|
Immediately | $ 66.94 | ||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 134178901 | Screw,8 X 0.500 (Replaces: 5303211311) |
|
$ 16.54 |
