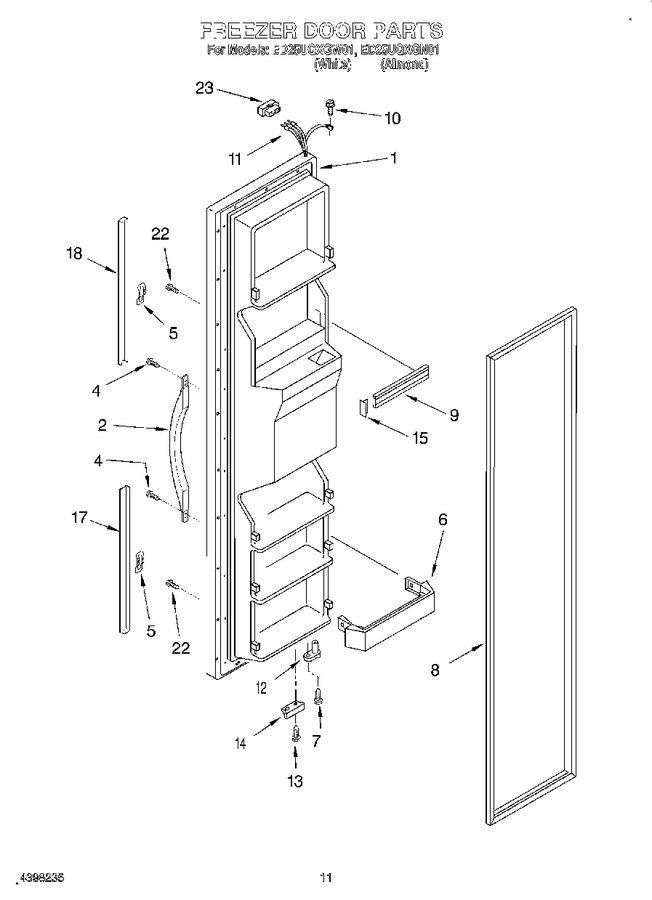

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194507N		Freezer Door (includes Item 8 And Dispenser Front Parts) (almond)		Appelez-nous	-
1	2194507W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
2	2186649N		Handle, Center (almond)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
6	2194501		Trivet, Shelf (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
8	2159074		Door Gasket, Magnetic (repair)				$ 310.19
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 23.11
10	WP489128		Screw   (Replaces: 488500)				$ 10.88
11	2183713		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2195950		Bracket, Door Stop				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
17	2194969W		Extension, Handle (white)				$ 5.51
17	2194969N		Extension, Handle (almond)		Appelez-nous	-
18	2194973W		Extension, Handle (white)				$ 5.65
18	2194973N		Extension, Handle (almond)		Appelez-nous	-
22	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
23	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
