SELECT A DIAGRAM

01 - Cover


03 - Backguard

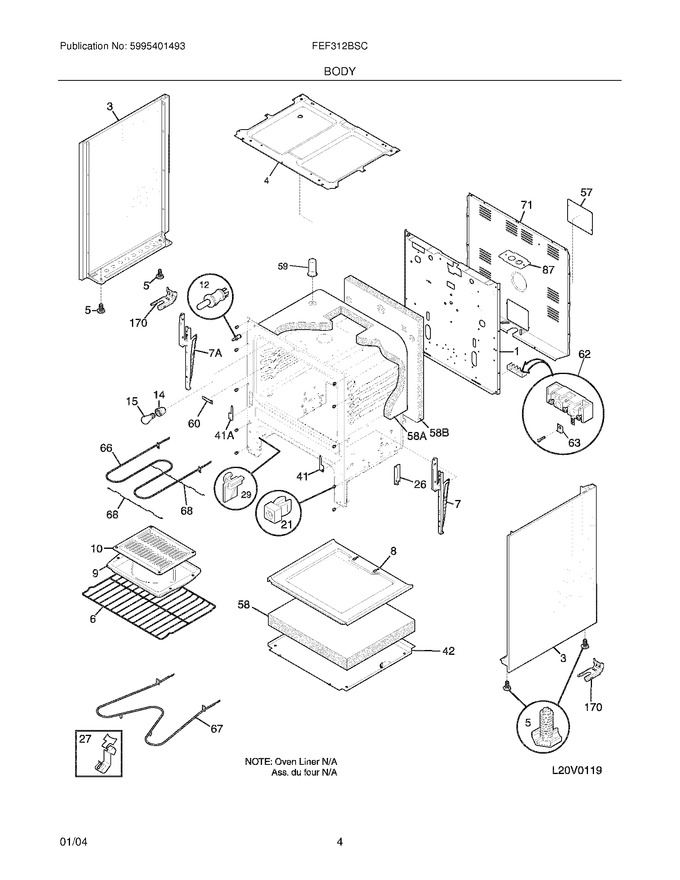

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back,main		Appelez-nous	-
3	316216403		Panel,bodyside ,white ,lh		Appelez-nous	-
3	316216402		Panel,bodyside ,white ,rh		Appelez-nous	-
4	5304522901		Burner Box   (Replaces: 316201401)				$ 95.21
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 114.56
7	316566202		Hinge,oven Door ,rh   (Replaces: 316216502)				$ 82.18
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
21	3014099		Spacer,bodyside				$ 3.62
26	316206300		Support,chassis ,(2)				$ 21.91
27	5303284616		Clip,thermo Bulb Mtg				$ 10.95
28	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 9.13
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	316206200		Shield,wool ,lower		Appelez-nous	-
57	316081100		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073605		Tube,oven Vent				$ 89.78
60	316239100		Cover,oven Front		Appelez-nous	-
62	5303935238		Terminal Block Kit,w/ground Plate				$ 112.61
63	316278800		Plate,grounding Strap		Appelez-nous	-
66	316203200		Element-broil			Immediately	$ 182.72
67	316075103		Element-bake			Immediately	$ 47.07
68	316203400		Support,broil Element				$ 78.76
71	316015810		Shield-rear Wall,galv Steel		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
170	316112500		Template,anti-tip				$ 3.94
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 14.32
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 21.01
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047707		Insulation, 1`` ,oven Wrapper				$ 167.69
58B	316054202		Insulation, 1`` ,oven Back				$ 85.10
7A	316216503		Hinge,oven Door ,lh		Appelez-nous	-
F12	316209902		Switch,oven Light/door				$ 81.11
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 16.91
NI	316073400		Plate,weight ,(3)		Appelez-nous	-
NI	316246400		Plug,button ,oven Probe		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 12.60
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13
NI	316021131		Screw,bodyside ,8-18 X 11/16 ,white		Appelez-nous	-
NI	316253143		Wiring Harness,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
