Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP112432 Screw 10-32x7/16``   (Replaces: 311484) Special Order $ 8.63

2 325743 Baffle - Airway Appelez-nous -
3 306587 Foam Strip Appelez-nous -
4 DE81-09655A Fuse-15 Amp.   (Replaces: 106208) Special Order $ 125.72

5 277608 Fuse Holder Appelez-nous -
6 325702 Side-compartment Appelez-nous -
7 325723 Air Duct Appelez-nous -
8 326281 Front - Blower Mounting Plate Appelez-nous -
9 326280 Fan Blade Appelez-nous -
10 326279 Support - Blower Motor Appelez-nous -
11 326278 Motor - Blower Appelez-nous -
12 236313 Keps Nut 6-32 Appelez-nous -
13 70286 Set Screw 10-32 Appelez-nous -
14 325382 Mounting Plate - Blower Appelez-nous -
15 109180 Convenience Outlet (2 Req) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

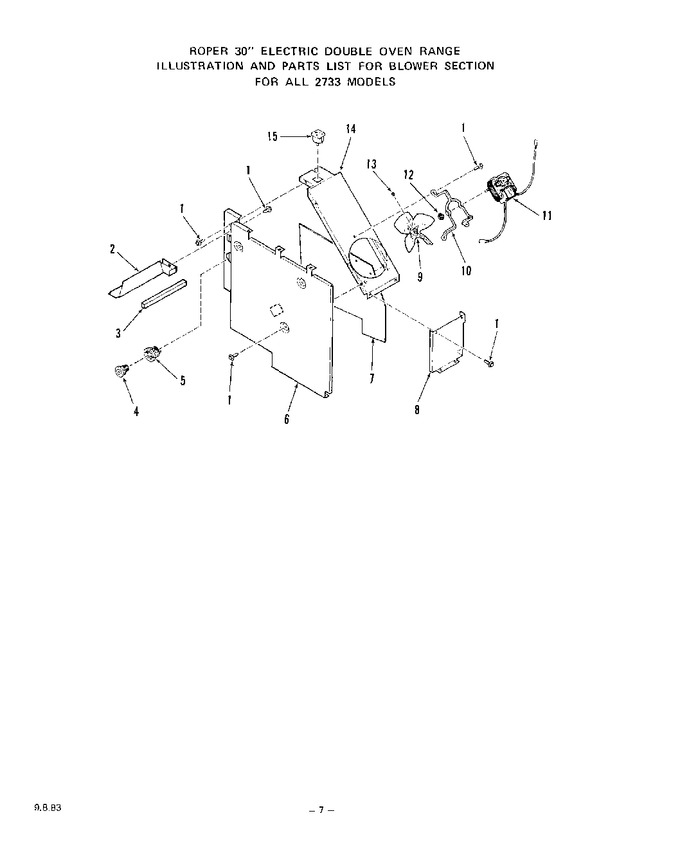

Diagram for 2733W0A
