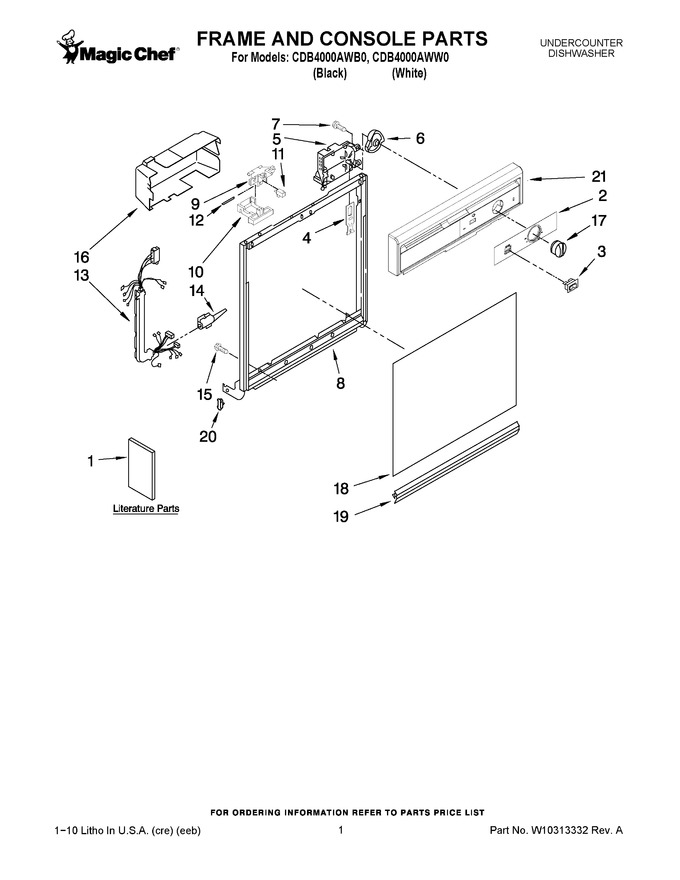

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10039930		Diagram, Wiring		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
1	W10255095		Instructions, Installation (supplement) (location Your Water Supply)		Appelez-nous	-
1	W10224134		Guide, Energy		Appelez-nous	-
1	W10130980		Guide, Use & Care		Appelez-nous	-
2	W10240221		Insert, Console (white)		Appelez-nous	-
2	W10240220		Insert, Console (black)		Appelez-nous	-
3	8051730		Switch, Rocker (white)				$ 83.48
3	8051729		Switch, Rocker (black)				$ 81.19
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WPW10199588		Timer   (Replaces: W10039490)				$ 351.31
6	WP8271510		Cam   (Replaces: 8271510)				$ 8.96
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8573186		Harness And Protector				$ 162.29
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw,   (Replaces: 3400892)				$ 8.24
16	8051644		Cover Timer		Appelez-nous	-
17	8275308		Knob, Timer (white)   (Replaces: 8275309)				$ 75.05
17	8275308		Knob, Timer (black)				$ 75.05
18	3379375		Front Panel (black)				$ 115.07
18	3379376		Front Panel (white)				$ 116.81
19	3374010		Retainer, Panel				$ 40.68
20	WP3373234		Bearing, Spring, (2)   (Replaces: 3373234)				$ 11.01
21	W10240308		Console (includes Item 2) (white)		Appelez-nous	-
21	W10240307		Console (includes Item 2) (black)		Appelez-nous	-
