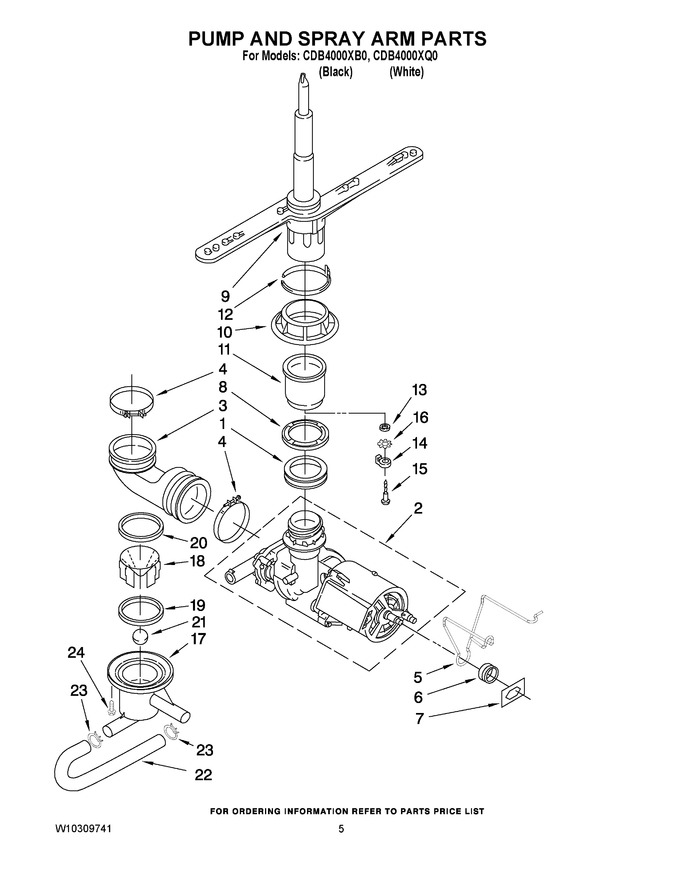

04 - Pump And Spray Arm Parts


05 - Pump And Motor Parts


06 - Dishrack Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369037		Grommet, Pump Seal				$ 28.33
2	3369015		Pump & Motor Assembly (for Breakdown Of Pump Parts, Refer To Pump And Motor Parts Page)		Appelez-nous	-
3	W11189178		Hose, Pump Inlet   (Replaces: 3369035)				$ 27.33
4	3400959		Clamp (2)				$ 26.08
5	W10113908		Support, Motor				$ 15.51
6	8535657		Grommet, Motor Support				$ 6.96
7	3370856		Pushnut, Motor Support				$ 5.58
8	3369038		Washer, Grommet				$ 12.83
9	W10164258		Spray Arm, Assembly Lower				$ 39.19
10	8268883		Nut, Pump Outlet		Appelez-nous	-
11	3371745		Support & Bearing Assembly (includes Items: 13, 14 & 15)				$ 38.01
12	WP3369045		Seal, Split Ring   (Replaces: 3369045)				$ 10.93
13	3369044		Washer		Appelez-nous	-
14	3371746		Bearing				$ 13.51
15	3371744		Shoulder Screw		Appelez-nous	-
16	3371634		Washer, Curved				$ 5.33
17	8520839		Collector (includes Items 20 & 22)				$ 63.16
18	WP8520841		Funnel   (Replaces: 8520841)				$ 6.95
19	WP8520843		Seal, Funnel   (Replaces: 8520843)				$ 11.12
20	WP3369177		Seal   (Replaces: 3369177)				$ 11.87
21	WP3369178		Ball, Check-valve   (Replaces: 3369178)				$ 11.01
22	8520842		Hose, Collector				$ 97.72
23	371499		Hose, Clamp				$ 12.95
24	8534039		Screw, 10-16, Hi-lo (4)				$ 35.67
