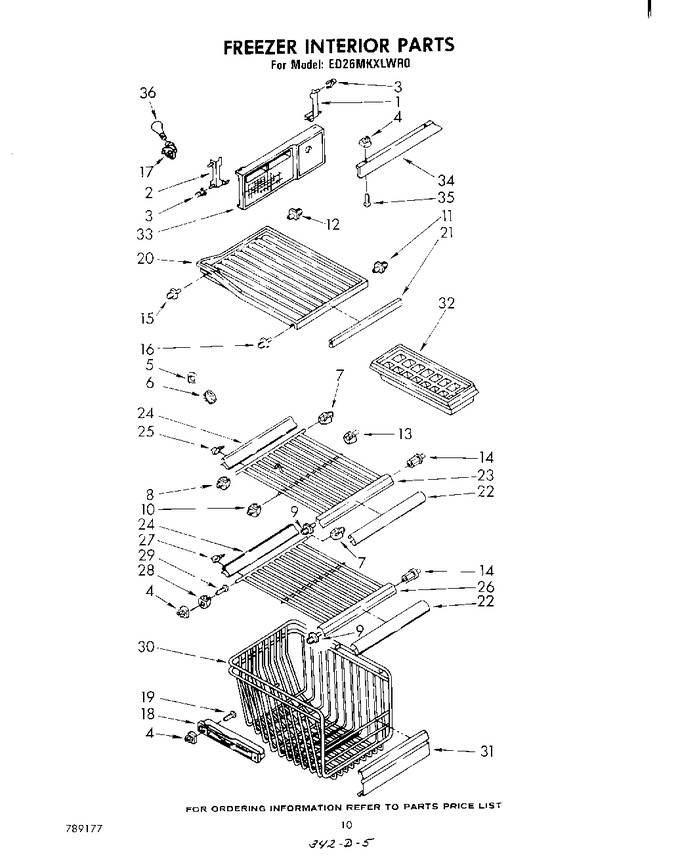

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842355		Support, Light R.s.		Appelez-nous	-
2	842356		Support, Light L.s.		Appelez-nous	-
3	843945		Clip, Tubular		Appelez-nous	-
4	842339		Grommet		Appelez-nous	-
5	519890		Hole, Plug		Appelez-nous	-
6	659598		Hole, Plug		Appelez-nous	-
7	937516		Shelf Stud, Saddle		Appelez-nous	-
8	523264		Shelf Stud, Saddle		Appelez-nous	-
9	529758		Shelf, Stud		Appelez-nous	-
10	509108		Shelf Stud		Appelez-nous	-
11	937513		Stud, Shelf		Appelez-nous	-
12	991924		Stud, Shelf		Appelez-nous	-
13	936958		Stud, Shelf		Appelez-nous	-
14	936957		Shelf, Stud		Appelez-nous	-
15	521878		Shelf Stud		Appelez-nous	-
16	536410		Shelf, Stud		Appelez-nous	-
17	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
18	837554		Track, Shelf (r.s.)		Appelez-nous	-
18	837557		Track, Shelf (l.s.)		Appelez-nous	-
19	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 14.76
20	986557		Solid Shelf (for Platinum Model Only)		Appelez-nous	-
20	935492		Shelf, Solid		Appelez-nous	-
21	986437		Trim, Shelf		Appelez-nous	-
22	985542		Trim Shelf, Front		Appelez-nous	-
23	935495		Wire Shelf		Appelez-nous	-
24	935496		Reflector, Shelf		Appelez-nous	-
25	939348		Reflector, Clip		Appelez-nous	-
26	984293		Wire Shelf		Appelez-nous	-
27	982276		Clip Reflector		Appelez-nous	-
28	836492		Shelf Stud (l.s.)		Appelez-nous	-
29	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 8.28
30	935499		Basket, Freezer		Appelez-nous	-
31	985546		Trim, Basket		Appelez-nous	-
32	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
33	985539		Light Lens, Freezer		Appelez-nous	-
34	SM999		Baffle, Liner Top   (Replaces: 983369)			Immediately	$ 30.26
35	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
36	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
36	789177		List, Parts		Appelez-nous	-
36	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
36	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
36	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
36	1100164		Consumer Buy Guide		Appelez-nous	-
36	946627		Service & Wiring Sheet		Appelez-nous	-
36	1100165		Energy Guide		Appelez-nous	-
36	1100163		Guide, Use & Care		Appelez-nous	-
36	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
36	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
36	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
36	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
36	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
36	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
36	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
36	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
36	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
36	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
36	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
36	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
36	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
36	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
36	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
36	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
36	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
36	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
36	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
36	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
36	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
36	876029		Kit, Foam Slab (30`` X 32-1/2`` 2-5/8``)		Appelez-nous	-
36	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
36	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
	350942		Primer White (13 Oz. Spray Can)				$ 94.14
	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
	261888		Xenamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
	261886		Xenamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
