SELECT A DIAGRAM

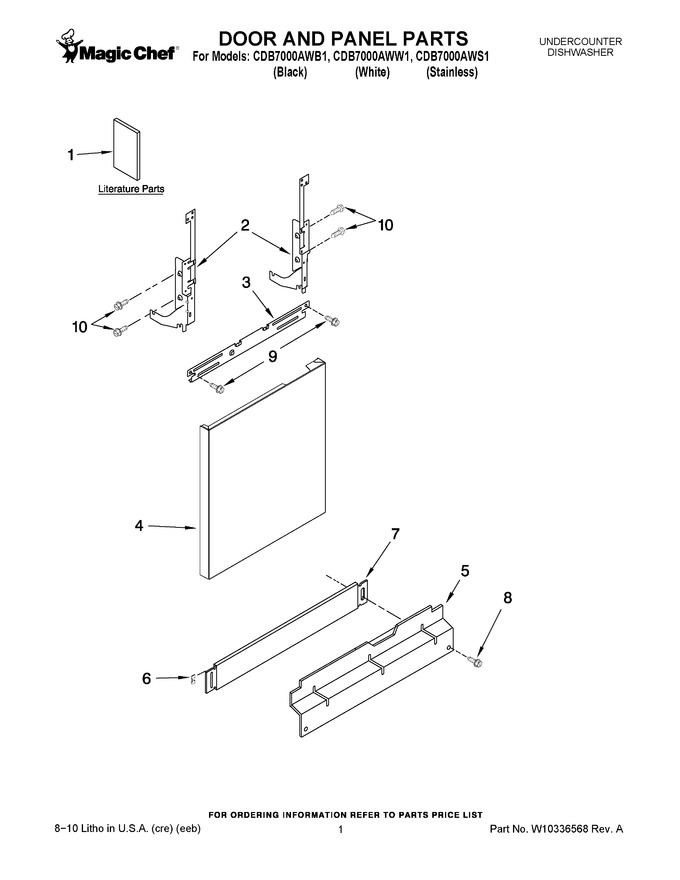

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10310536		Guide, Use & Care Spanish		Appelez-nous	-
1	W10282553		Instructions, Installation		Appelez-nous	-
1	W10329262		Energy Guide		Appelez-nous	-
1	W10310535		Guide, Use & Care English/french		Appelez-nous	-
2	W11613572		Arm, Hinge (right)   (Replaces: W10143373)			Immediately	$ 78.37
2	W11806566		Arm, Hinge (left)   (Replaces: W10143374)			Immediately	$ 66.52
3	8268983		Stiffener, Door				$ 38.77
4	WPW10274895		Panel Front (black)   (Replaces: W10274895)				$ 369.82
4	WPW10274902		Panel Front (s.steel)   (Replaces: W10274902)			Immediately	$ 374.34
4	WPW10274896		Panel Front (white)   (Replaces: W10274896)				$ 345.25
5	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 38.79
5	WPW10441007		Access Panel (white)   (Replaces: W10195778)				$ 162.80
6	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.68
7	WP8573287		Toe Panel (includes No.6) (white)   (Replaces: 8573287)				$ 165.12
7	W10871196		Toe Panel (includes No.6) (black)   (Replaces: 8573286)				$ 165.75
8	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 7.75
8	WP3400836		Screw (white)   (Replaces: 3400836)				$ 7.53
9	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.00

    View Diagram in Separate Window       Print Part List
