Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 521516 Shelf, Stud Appelez-nous -
2 836374 Retainer, Stud Appelez-nous -
3 988774 Retainer, Stud Appelez-nous -
4 936957 Shelf, Stud Appelez-nous -
5 529758 Shelf, Stud Appelez-nous -
6 937516 Shelf, Saddle (r.s.) Appelez-nous -
7 536410 Shelf, Stud Appelez-nous -
8 991924 Stud, Shelf Appelez-nous -
9 982321 Slide, Freezer Bin Appelez-nous -
10 487979 Screw, 8 X 1 Appelez-nous -
11 837557 Track, Shelf (l.s.) Appelez-nous -
11 837554 Track, Shelf (r.s.) Appelez-nous -
12 W11693756 Screw, 8-15 X 5/8   (Replaces: 487042) In-Stock Immediately $ 14.76

13 935839 Shelf, Solid Appelez-nous -
13 983356 Solid Shelf (for Platinum Model Only) Appelez-nous -
14 986437 Trim, Shelf Appelez-nous -
15 935840 Frontice, Compartment Appelez-nous -
15 1101426 Frontice, Compartment (for Platinum Model Only) Appelez-nous -
16 943996 Shelf, Freezer Appelez-nous -
17 985542 Trim Shelf, Front Appelez-nous -
18 935496 Reflector, Shelf Appelez-nous -
19 939348 Clip, Reflector Appelez-nous -
20 836492 Shelf Stud, Saddle L.s. Appelez-nous -
21 WP488729 Screw, 8-15 X 1/2   (Replaces: 487109) In-Stock Immediately $ 8.28

22 935499 Basket, Freezer Appelez-nous -
23 985546 Trim, Freezer Basket Appelez-nous -
24 983667 Ice Container Special Order $ 80.84

25 W10749708 Coupling, Ice Container   (Replaces: 983668) Special Order $ 27.44

26 983669 Conveyor, Ice Container Appelez-nous -
27 983670 Drum, Ice Dispenser Appelez-nous -
28 983671 Drum, Drive Bar Appelez-nous -
29 983672 Collar, Conveyor Appelez-nous -
30 983673 Bearing, Conveyor Appelez-nous -
31 983674 Front Cover, Ice Dispenser (for Platinum Model Only) Appelez-nous -
31 935842 Front Cover, Ice Dispenser Appelez-nous -
32 983677 Overlay, Front Cover Appelez-nous -
33 WP488787 Screw, (8-18 X 1/2)   (Replaces: 488886) Special Order $ 11.26

34 989718 Baffle, Ice Container Appelez-nous -
35 WP488729 Screw, 8 X 1/2   (Replaces: 488320) In-Stock Immediately $ 8.28

36 842339 Grommet Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

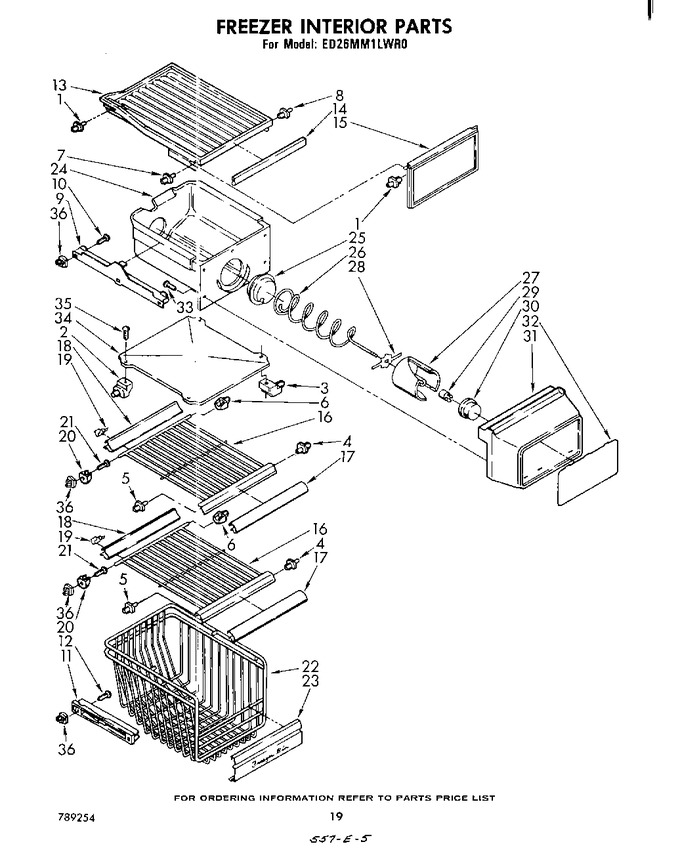

Diagram for ED26MM1LWR0
