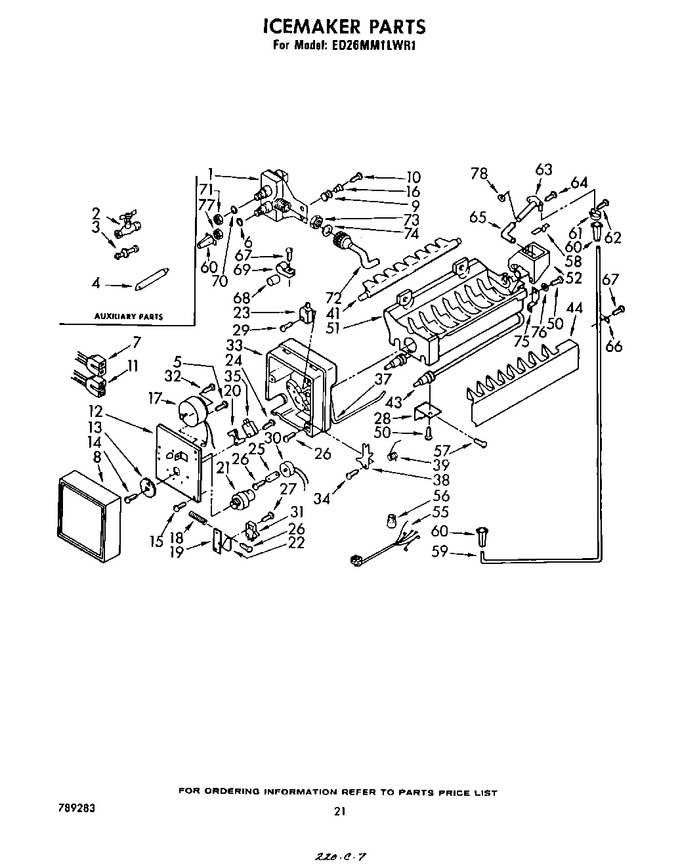

12 - Icemaker


13 - Serva-door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4318046		Valve, Solenoid   (Replaces: 627431)			Immediately	$ 92.87
2	541157		Valve, Shut-off		Appelez-nous	-
3	512503		Union, 1/4`` X 3/16``		Appelez-nous	-
4	978488		Filter Kit		Appelez-nous	-
5	488622		Screw (use W/motor 627106)		Appelez-nous	-
5	488361		Screw (use W/motor 625846)		Appelez-nous	-
6	00753257		Ring, ``o``   (Replaces: 488819)			Immediately	$ 295.49
7	548734		Wiring, Water Valve		Appelez-nous	-
8	627356		Cover		Appelez-nous	-
9	510723		Grommet (2)		Appelez-nous	-
10	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
11	850564		Wiring, Dispensing Valve		Appelez-nous	-
12	625833		Plate, Mounting		Appelez-nous	-
13	625914		Gear		Appelez-nous	-
14	488957		Screw		Appelez-nous	-
15	WP488787		Screw, 8-18 X 1/2 (3)   (Replaces: 488886)				$ 10.58
16	510906		Spacer (2)		Appelez-nous	-
17	625846		Motor		Appelez-nous	-
17	627106		Motor (alternate)		Appelez-nous	-
18	627163		Spring		Appelez-nous	-
19	625836		Plate, Valve		Appelez-nous	-
20	625834		Spacer, Holding Switch				$ 7.99
21	625913		Cam		Appelez-nous	-
22	625835		Insulator		Appelez-nous	-
23	625851		Switch, S.p.d.t. (2)		Appelez-nous	-
24	488361		Screw, 4-40 X 1		Appelez-nous	-
25	625829		Clamp, Thermostat		Appelez-nous	-
26	488372		Screw, 8-32 X 1		Appelez-nous	-
27	00488362		Screw, 4-40 X 3/4   (Replaces: 488362)				$ 144.58
28	WP2256087		Bracket   (Replaces: 625910)				$ 93.00
29	488360		Screw, 4-24 X 3/4		Appelez-nous	-
30	627047		Thermostat		Appelez-nous	-
30	627206		Thermostat (alternate)		Appelez-nous	-
31	625947		Switch, S.p.s.t.		Appelez-nous	-
32	488542		Screw, Ground		Appelez-nous	-
33	625827		Support		Appelez-nous	-
34	627199		Screw, Shoulder		Appelez-nous	-
35	627720		Switch, S.p.t.		Appelez-nous	-
37	627484		Arm, Shut-off		Appelez-nous	-
38	625830		Lever, Arm		Appelez-nous	-
39	625832		Spring, Shut-off Arm		Appelez-nous	-
41	WP627843		Ejector   (Replaces: 627169)				$ 83.60
43	625843		Heater, Mold		Appelez-nous	-
44	627168		Stripper, Ice		Appelez-nous	-
50	488896		Screw, 8-16 X 3/8		Appelez-nous	-
51	627170		Mold & Heater Assembly (includes Illus. 43)		Appelez-nous	-
52	625707		Bearing & Inlet		Appelez-nous	-
55	627357		Wire Harness		Appelez-nous	-
56	227991		Connector Wire		Appelez-nous	-
57	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 7.85
58	652604		Clip		Appelez-nous	-
59	W10823511		Tube, Water   (Replaces: 836240)			Immediately	$ 32.41
60	4387491		Insert, Tube (3)   (Replaces: 841707)				$ 7.84
61	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
62	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.72
63	WP2196157		Fitting, Water Tube   (Replaces: 983990)			Immediately	$ 11.99
64	WP98165		Screw, 8 X 5/8 (2)   (Replaces: 488401)				$ 8.00
65	983656		Tube, Water Inlet		Appelez-nous	-
66	836472		Clamp, Tube (3)		Appelez-nous	-
67	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
68	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
69	510716		Clamp Tube		Appelez-nous	-
70	488794		Ring, ``o``		Appelez-nous	-
71	WP627018		Nut, 1/4 Dia.   (Replaces: 488810)				$ 10.97
72	836200		Tube, Inlet		Appelez-nous	-
73	537588		Nut, Valve		Appelez-nous	-
74	WP16123		Washer   (Replaces: 488292)				$ 7.70
75	627409		Bracket, Shut-off Arm		Appelez-nous	-
76	627435		Fastener, Springrip		Appelez-nous	-
77	488795		Nut, 1/4 Dia.		Appelez-nous	-
78	WP1106508		Seal, Gasket   (Replaces: 1103059)			Immediately	$ 9.93
