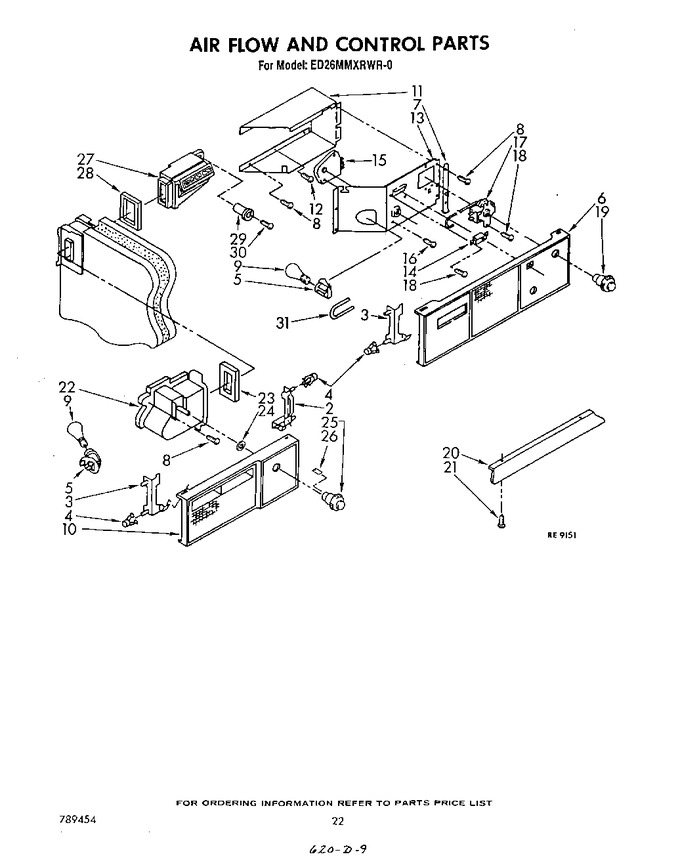

12 - Airflow And Control


13 - Serva-door , Not Included, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	842355		Support, Light Lens (r.s.)		Appelez-nous	-
3	842356		Support, Light Lens (l.s.)		Appelez-nous	-
4	843945		Clip, Tubular		Appelez-nous	-
5	4387478		Socket, Light   (Replaces: 851067)			Immediately	$ 115.67
6	943218		Light Lens		Appelez-nous	-
7	984552		Support, Light Lens		Appelez-nous	-
8	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
9	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
10	985539		Light Lens, Freezer		Appelez-nous	-
11	984550		Box, Control		Appelez-nous	-
12	488474		Screw, 8-32 X 3/8		Appelez-nous	-
13	934045		Control Box Front		Appelez-nous	-
14	938049		Switch, Toggle		Appelez-nous	-
15	W10822278		Defrost Timer, 8 Hours   (Replaces: 943435)			Immediately	$ 34.44
16	WP3388228		Screw, 6-20 X 3/8   (Replaces: 488911)				$ 7.30
17	WP4317800		Thermostat & Barrier   (Replaces: 946644)			Immediately	$ 278.68
18	488624		Screw, 8 X 3/8		Appelez-nous	-
19	836482		Knob, Temperature		Appelez-nous	-
20	SM999		Baffle, Liner Top   (Replaces: 983369)			Immediately	$ 30.26
21	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
22	841269		Air Scoop Assembly		Appelez-nous	-
23	844871		Gasket, Air Scoop		Appelez-nous	-
24	938439		Retainer, Damper		Appelez-nous	-
25	837445		Control Knob		Appelez-nous	-
26	837444		Knob, Retainer		Appelez-nous	-
27	946145		Air Diffuser Assembly		Appelez-nous	-
28	842394		Gasket, Air Diffuser		Appelez-nous	-
29	836667		Spacer		Appelez-nous	-
30	488357		Screw, 8 X 1-1/4		Appelez-nous	-
31	WP2196003		Thermostat, Tube Barrier   (Replaces: 989573)				$ 8.35
