Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1101443 Exterior Door Panel Freezer (toast) Appelez-nous -
1 941958 Exterior Door Panel Freezer (white) Appelez-nous -
1 941960 Exterior Door Panel Freezer (golden Harvest) Appelez-nous -
1 941962 Exterior Door Panel Freezer (almond) Appelez-nous -
1 1101444 Exterior Door Panel Freezer (platinum) Appelez-nous -
2 851373 Plug, Crossover Appelez-nous -
3 988402 Tap Plate Appelez-nous -
4 4318165 Door Closer, Cam   (Replaces: 986758) In-Stock Immediately $ 29.74

5 WP489069 Screw, 8 X 1/2   (Replaces: 488938) In-Stock Immediately $ 8.40

6 534927 Hole Plug Appelez-nous -
7 991415 Tube, Door Wiring Appelez-nous -
8 227991 Wire Connector Appelez-nous -
9 988420 Bracket, Door Stop Appelez-nous -
10 988421 Shim Appelez-nous -
11 488549 Screw, 89 X 5/8 Appelez-nous -
12 983679 Insulation, Dispenser Appelez-nous -
13 982887 Retainer, Gasket Side Appelez-nous -
14 983643 Retainer, Gasket Top & Bottom Appelez-nous -
15 939342 Door Gasket, Magnetic Appelez-nous -
16 WP489069 Screw, 7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 8.40

16 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 8.47

17 1109112 Handle, Center Appelez-nous -
17 1109114 Handle, Center (for Platinum Model Only) Appelez-nous -
18 935103 Center End Cap, Handle Appelez-nous -
19 935075 Shim, Handle Center Appelez-nous -
20 941242 Screw Anchor Appelez-nous -
21 WP488729 Screw   (Replaces: 489222) In-Stock Immediately $ 8.28

22 1119704 Insert, Handle (top) (platinum) Appelez-nous -
22 1119703 Insert, Handle (top) (toast) Appelez-nous -
22 1119702 Insert, Handle (top) (almond) Appelez-nous -
22 1119701 Insert, Handle (top) (golden Harvest) Appelez-nous -
22 1119700 Insert, Handle (top) (white) Appelez-nous -
23 1119739 Insert, Handle (bottom) (platinum) Appelez-nous -
23 1119735 Insert, Handle (bottom) (white) Appelez-nous -
23 1119736 Insert, Handle (bottom) (golden Harvest) Appelez-nous -
23 1119737 Insert, Handle (bottom) (almond) Appelez-nous -
23 1119738 Insert, Handle (bottom) (toast) Appelez-nous -
24 941954 Retainer Insert (top) Appelez-nous -
25 935875 Retainer Insert (bottom) Appelez-nous -
26 941259 End Cap Appelez-nous -
27 00489248 Screw, 10-32 X 5/8   (Replaces: 489248) Special Order $ 38.59

28 935106 End Cap, Retainer Appelez-nous -
29 488915 Screw, 6-32 X 1/2 Appelez-nous -
30 987188 Ice Chute Appelez-nous -
31 985550 Overlay, Ice Dispenser Appelez-nous -
32 537095 Expansion Clip Appelez-nous -
33 WP488729 Screw, 8 X 1/2   (Replaces: 488320) In-Stock Immediately $ 8.28

34 1101428 Interior, Door Panel Appelez-nous -
35 1108928 Trim, Door Shelf Appelez-nous -
36 839904 Retainer, Door Trim Special Order $ 5.65

37 WP1104787 Shim, Door Closer   (Replaces: 1104787) Special Order $ 7.96


    View Diagram in Separate Window     Print Icon   Print Part List

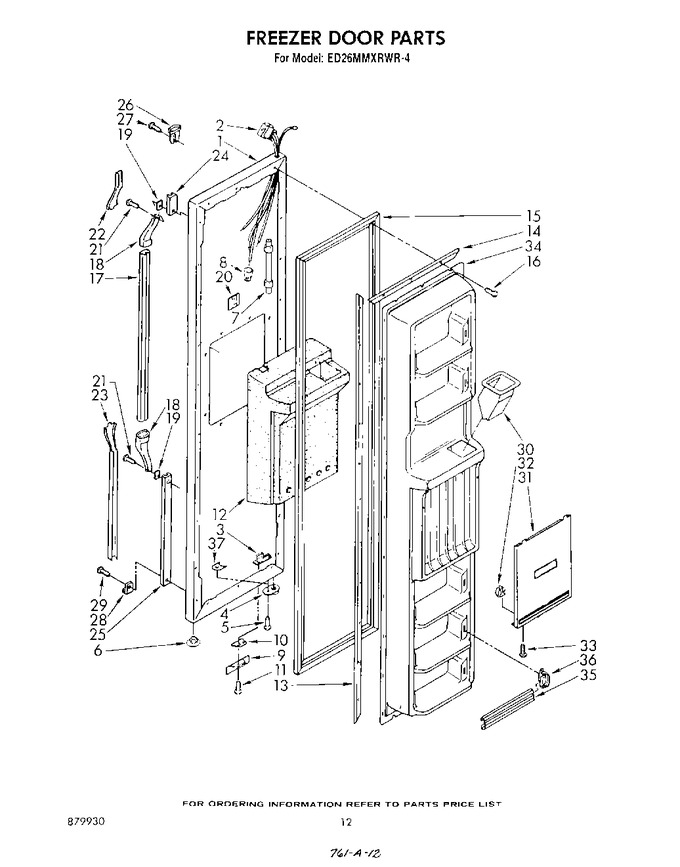

Diagram for ED26MMXRWR4
