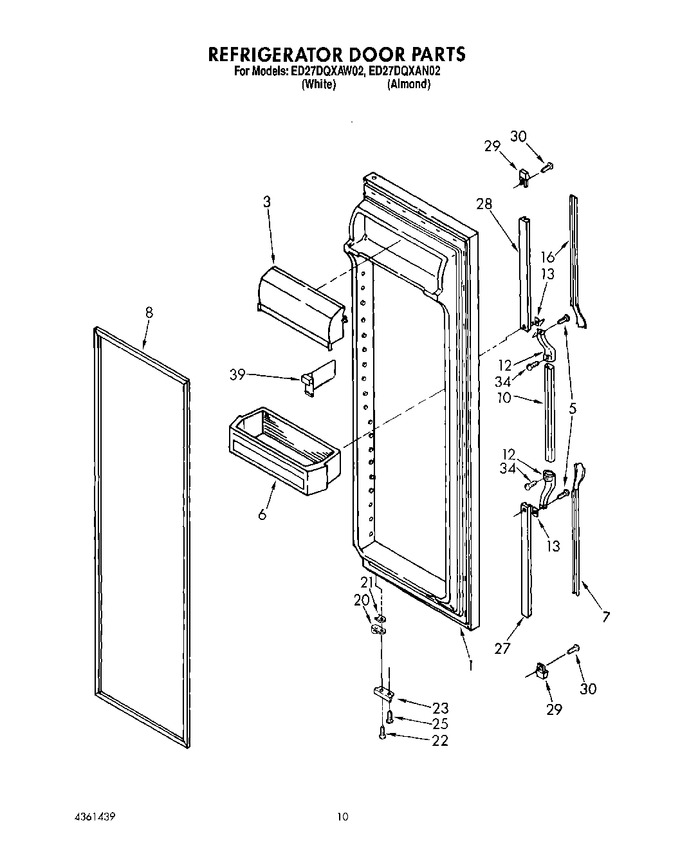

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2157690 | Refrigerator Door (white) |
|
- | |||||
| 1 | 2157692 | Refrigerator Door (almond) |
|
- | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2156058) |
|
Immediately | $ 85.16 | ||||
| 5 | WP489128 | Screw, 8 X 1/2 (4) (Replaces: 488500) |
|
$ 10.88 | |||||
| 6 | 2150134 | Shelf Bin (2) |
|
- | |||||
| 7 | 1119361 | Insert, Handle (white) |
|
- | |||||
| 7 | 1119363 | Insert, Handle (almond) |
|
- | |||||
| 8 | 2159075 | Door Gasket, Magnetic (repair) (white) (Replaces: 2159079) |
|
Immediately | $ 317.14 | ||||
| 8 | 2159075 | Door Gasket, Magnetic (repair) (almond) |
|
Immediately | $ 317.14 | ||||
| 10 | 1124713 | Handle, Center (white) |
|
- | |||||
| 10 | 943079 | Handle, Center (almond) |
|
- | |||||
| 12 | 1119359 | End Cap, Center Handle |
|
- | |||||
| 13 | 935075 | Shim |
|
- | |||||
| 16 | 1119373 | Insert, Handle (white) |
|
- | |||||
| 16 | 1119375 | Insert, Handle (almond) |
|
- | |||||
| 20 | 4318165 | Door Closer, Upper Cam (Replaces: 986758) |
|
Immediately | $ 27.36 | ||||
| 21 | WP1104787 | Shim, Door Closer (Replaces: 1104787) |
|
$ 7.58 | |||||
| 22 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 7.86 | ||||
| 23 | 2157611 | Bracket, Door Stop |
|
- | |||||
| 25 | WP489069 | Screw, 8 X 1/2 (Replaces: 488938) |
|
Immediately | $ 7.86 | ||||
| 27 | 1119360 | Retainer, Insert (bottom) |
|
- | |||||
| 28 | 1119372 | Retainer, Insert |
|
- | |||||
| 29 | 2156220 | End Cap (2) |
|
- | |||||
| 30 | 489075 | Screw, 10-32 X 5/8 (2) |
|
- | |||||
| 34 | 489022 | Screw |
|
- | |||||
| 39 | 4210344 | Trim Kit |
|
- | |||||
| 39 | 2152335 | Divider (2) |
|
- | |||||
| 39 | 4210352 | Trimless Black Decor Panel |
|
- | |||||
| 39 | 4210378 | Black Handle Insert |
|
- | |||||
| 39 | 4210446 | Woodgrain Handle Insert |
|
- |
