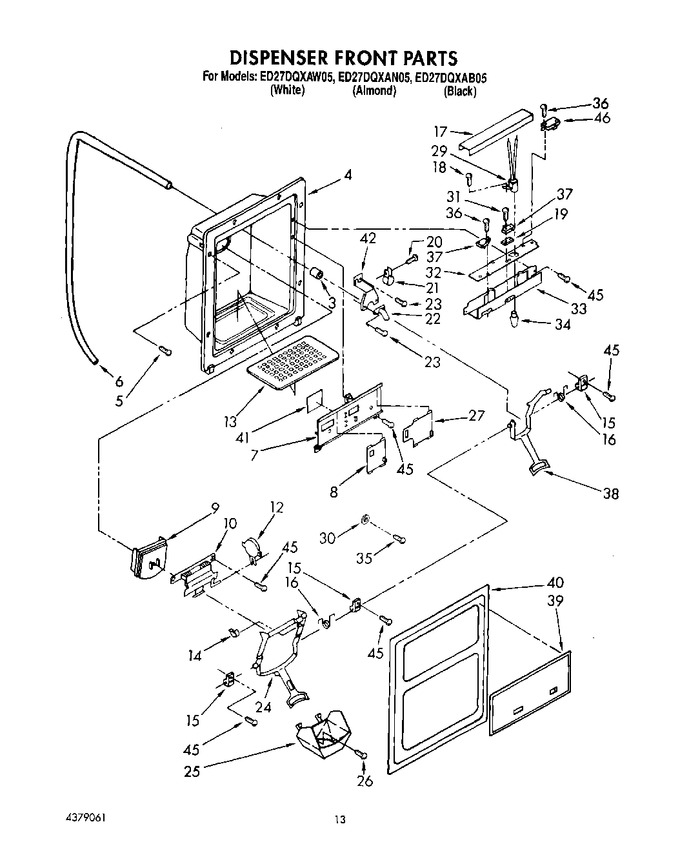

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 7.84 | |||||
| 4 | N/A | Housing, Dispenser (not A Serviceable Part) |
|
- | |||||
| 5 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 6 | W10823511 | Tube, Water (Replaces: 987053) |
|
Immediately | $ 32.41 | ||||
| 7 | 2152717 | Frame, Slides (white) |
|
- | |||||
| 7 | 2152718 | Frame, Slides (almond) |
|
- | |||||
| 7 | 2152716 | Frame, Slides (black) |
|
- | |||||
| 8 | 2152720 | Slide, Cube/crush Switch (white) |
|
- | |||||
| 8 | 2152721 | Slide, Cube/crush Switch (almond) |
|
- | |||||
| 8 | 2152719 | Slide, Cube/crush Switch (black) |
|
- | |||||
| 9 | WP2180353 | Door, Ice (Replaces: 2157651) |
|
Immediately | $ 24.69 | ||||
| 10 | 2157650 | Door Mechanism Assembly (includes Item 9) |
|
- | |||||
| 12 | WP1120581 | Mechanism Delay (Replaces: 1120581) |
|
$ 213.07 | |||||
| 13 | 983900 | Grille, Overflow |
|
$ 27.30 | |||||
| 14 | 987917 | Clip, Bearing (2) |
|
- | |||||
| 15 | 983697 | Bearing, Lever (3) |
|
- | |||||
| 16 | 983696 | Spring, Lever (2) |
|
$ 21.26 | |||||
| 17 | 2147165 | Shield, Wiring |
|
- | |||||
| 18 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 19 | 625834 | Spacer, Switch |
|
$ 7.99 | |||||
| 20 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.58 | |||||
| 21 | WP488878 | Clamp (Replaces: 488878) |
|
$ 11.60 | |||||
| 22 | WP4388152 | Fitting, Water Inlet (white) (Replaces: 2155056) |
|
$ 276.43 | |||||
| 22 | WP4388152 | Fitting, Water Inlet (almond) (Replaces: 2155057) |
|
$ 276.43 | |||||
| 22 | WP4388152 | Fitting, Water Inlet (black) (Replaces: 2155037) |
|
$ 276.43 | |||||
| 23 | WP965173 | Screw (Replaces: 487916) |
|
Immediately | $ 10.72 | ||||
| 24 | 1125972 | Lever Assembly, Ice Dispenser (almond) |
|
- | |||||
| 24 | 1127421 | Lever Assembly, Ice Dispenser (black) |
|
- | |||||
| 24 | 1124718 | Lever Assembly, Ice Dispenser (white) |
|
- | |||||
| 25 | 1126026 | Guide, Ice (almond) |
|
- | |||||
| 25 | 1119035 | Guide, Ice (black) |
|
- | |||||
| 25 | 1124730 | Guide, Ice (white) |
|
$ 19.06 | |||||
| 26 | 488892 | Screw |
|
- | |||||
| 27 | 2152726 | Slide, Light Switch (white) |
|
- | |||||
| 27 | 2152727 | Slide, Light Switch (almond) |
|
- | |||||
| 27 | 2152724 | Slide, Light Switch (black) |
|
- | |||||
| 29 | 2147131 | Lamp Holder |
|
- | |||||
| 30 | 489336 | Washer |
|
- | |||||
| 31 | 488361 | Screw |
|
- | |||||
| 32 | 2147164 | Insulator, Control Bracket |
|
- | |||||
| 33 | 2147163 | Bracket, Control |
|
- | |||||
| 34 | WP22002263 | Bulb, Light (Replaces: 851389) |
|
Immediately | $ 13.66 | ||||
| 35 | 489360 | Screw |
|
- | |||||
| 36 | 489155 | Screw, |
|
- | |||||
| 37 | 814037 | Switch (3) (Replaces: 313125) |
|
$ 90.36 | |||||
| 38 | 1115349 | Lever Assembly, Water Dispenser (black) |
|
- | |||||
| 38 | 1124721 | Lever Assembly, Water Dispenser (white) |
|
- | |||||
| 38 | 1125974 | Lever Assembly, Water Dispenser (almond) |
|
- | |||||
| 39 | 2150319 | Plaque, Front Cover (black) |
|
- | |||||
| 39 | 2150318 | Plaque, Front Cover (white) |
|
- | |||||
| 39 | 2162690 | Plaque, Front Cover (almond) |
|
- | |||||
| 40 | 2162702 | Front Cover, Housing (includes Item 39) (almond) |
|
- | |||||
| 40 | 2150311 | Front Cover, Housing (includes Item 39) (black) |
|
- | |||||
| 40 | 2150313 | Front Cover, Housing (includes Item 39) (white) |
|
- | |||||
| 41 | 2147172 | Heat Shield, Frame |
|
- | |||||
| 42 | 987049 | Bracket, Water |
|
- | |||||
| 45 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 46 | 841336 | Switch, Water |
|
- |
