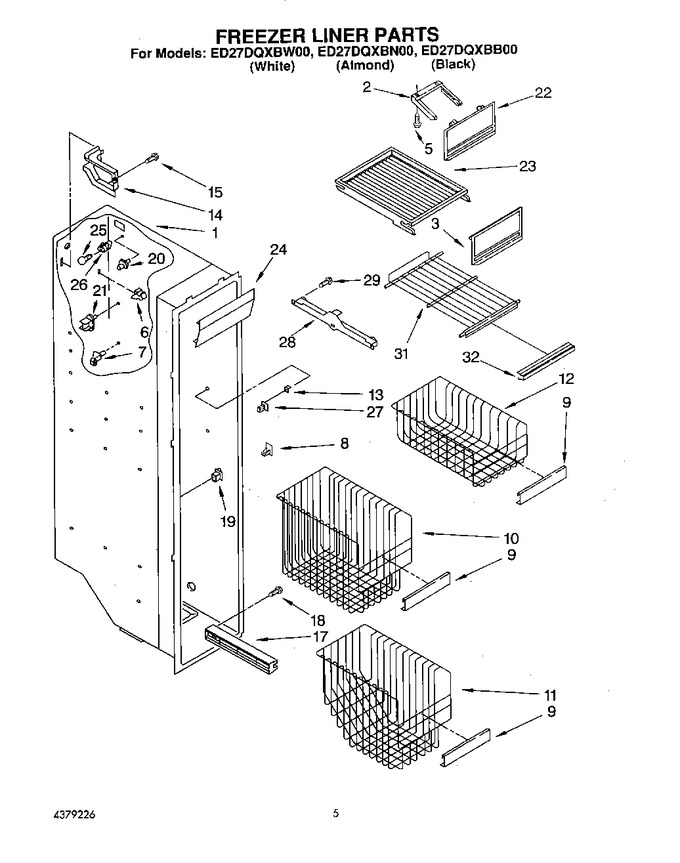

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 1115380 | Slide, Ice Door |
|
- | |||||
| 3 | 2162946 | Door, Ice Compartment |
|
- | |||||
| 5 | WP489478 | Screw (Replaces: 489242) |
|
$ 7.75 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.42 | |||||
| 7 | 1115317 | Support, Stud (4) |
|
- | |||||
| 8 | 1106982 | Stud, Rear |
|
- | |||||
| 9 | 2162834 | Trim, Basket |
|
- | |||||
| 10 | 2152088 | Basket, Tall |
|
- | |||||
| 11 | 2152090 | Basket, Slope |
|
- | |||||
| 12 | 2155600 | Basket (small) |
|
- | |||||
| 13 | 946355 | Stud, Support |
|
- | |||||
| 14 | 2155572 | Cover, Wiring |
|
- | |||||
| 15 | WP488729 | Screw (Replaces: 489176) |
|
Immediately | $ 7.79 | ||||
| 17 | 1126355 | Shelf Track (left Side (4)) |
|
- | |||||
| 17 | 1126354 | Shelf Track (right Side (4)) |
|
- | |||||
| 18 | W11693756 | Screw (Replaces: 487042) |
|
Immediately | $ 14.06 | ||||
| 19 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 20 | 4388538 | Stud (4) (Replaces: 1110718) |
|
Immediately | $ 31.34 | ||||
| 21 | 1115386 | Stud, Shelf (4) |
|
- | |||||
| 22 | 2162947 | Door, Top Compartment |
|
- | |||||
| 23 | 1115256 | Shelf, Top Compartment |
|
- | |||||
| 24 | 1115389 | Light Lens |
|
- | |||||
| 25 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 26 | 4387478 | Light Socket (Replaces: 851067) |
|
Immediately | $ 110.16 | ||||
| 27 | 1106982 | Stud, Rear R.s. |
|
- | |||||
| 27 | 946356 | Stud, Front R.s. |
|
- | |||||
| 28 | W10845585 | Slide, Container (left Side) (Replaces: 1119237) |
|
$ 132.77 | |||||
| 28 | W10845583 | Slide, Container (right Side) (Replaces: 1119293) |
|
$ 123.92 | |||||
| 29 | 718257 | Screw (Replaces: 489100) |
|
- | |||||
| 31 | WP2174267 | Shelf (Replaces: 2155604) |
|
$ 88.90 | |||||
| 32 | 2162939 | Trim, Shelf |
|
- |
