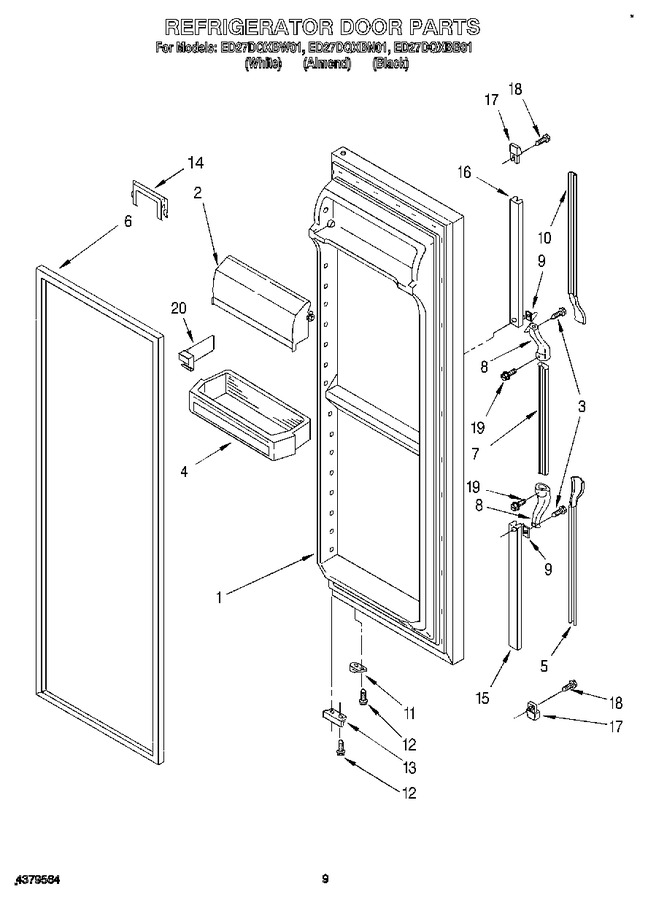

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171596		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2171597		Refrigerator Door (includes Item 6) (almond)		Appelez-nous	-
1	2170605		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2162903)			Immediately	$ 89.42
3	WP489128		Screw   (Replaces: 488500)				$ 11.40
4	2170536		Shelf Bin (4)		Appelez-nous	-
5	1118435		Insert, Handle (black)		Appelez-nous	-
5	1119373		Insert, Handle (white)		Appelez-nous	-
5	1119363		Insert, Handle (almond)		Appelez-nous	-
6	2159083		Door Gasket, Magnetic (repair) (black)				$ 251.49
6	2159075		Door Gasket, Magnetic (repair) (mist Beige)			Immediately	$ 333.00
6	2159075		Door Gasket, Magnetic (repair) (light Grey)   (Replaces: 2159079)			Immediately	$ 333.00
7	1118417		Handle, Center (black)		Appelez-nous	-
7	943079		Handle, Center (almond)		Appelez-nous	-
7	1124713		Handle, Center (white)		Appelez-nous	-
8	1119359		End Cap, Center Handle		Appelez-nous	-
9	935075		Shim		Appelez-nous	-
10	1119375		Insert, Handle (almond)		Appelez-nous	-
10	1119361		Insert, Handle (white)		Appelez-nous	-
10	1118437		Insert, Handle (black)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam (chrome)   (Replaces: 2155313)			Immediately	$ 29.74
11	4318165		Door Closer, Upper Cam (black)   (Replaces: 2155312)			Immediately	$ 29.74
12	WP999367		Screw   (Replaces: 489367)				$ 8.56
13	2155329		Bracket, Door Stop (black)		Appelez-nous	-
13	2155331		Bracket, Door Stop (chrome)		Appelez-nous	-
14	2163566		Retainer, Bottle		Appelez-nous	-
15	1119360		Retainer, Insert (bottom)		Appelez-nous	-
16	1119372		Retainer, Insert		Appelez-nous	-
17	2156220		End Cap (2)		Appelez-nous	-
18	489075		Screw		Appelez-nous	-
19	489022		Screw		Appelez-nous	-
20	2152335		Divider (3)		Appelez-nous	-
20	4210446		Woodgrain Handle		Appelez-nous	-
20	4210344		Trim Kit		Appelez-nous	-
20	4210352		Trimless Black Decor Panel		Appelez-nous	-
20	4210378		Black Handle Insert		Appelez-nous	-
