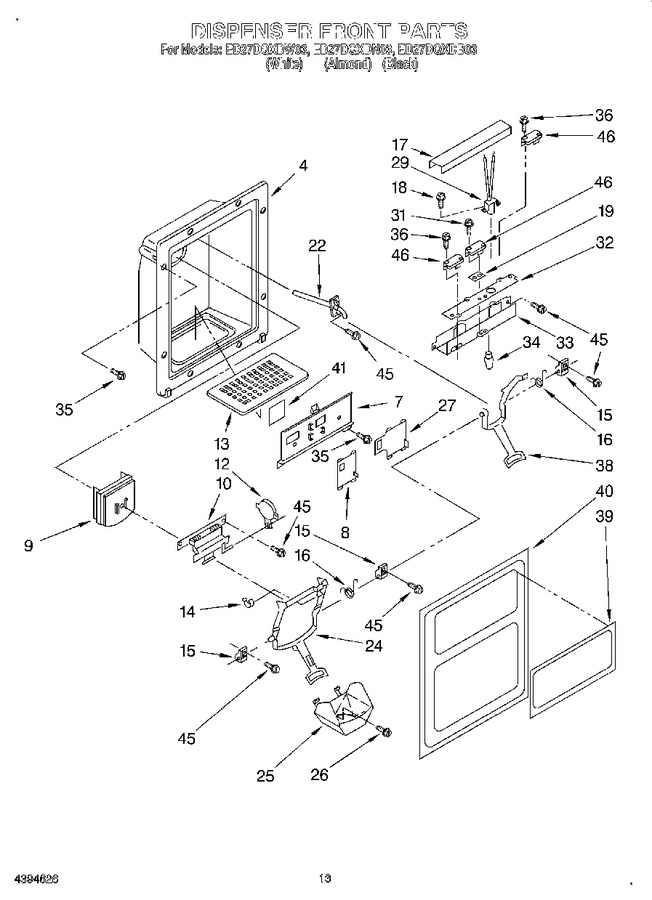

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | N/A | Housing, Dispenser (not A Serviceable Part) |
|
- | |||||
| 7 | 2152717 | Frame, Slides (white) |
|
- | |||||
| 7 | 2152718 | Frame, Slides (almond) |
|
- | |||||
| 7 | 2152716 | Frame, Slides (black) |
|
- | |||||
| 8 | 2152720 | Slide, Cube/crush Switch (white) |
|
- | |||||
| 8 | 2152721 | Slide, Cube/crush Switch (almond) |
|
- | |||||
| 8 | 2152719 | Slide, Cube/crush Switch (black) |
|
- | |||||
| 9 | WP2180353 | Door, Ice (Replaces: 2157651) |
|
Immediately | $ 24.69 | ||||
| 10 | 2157650 | Door Mechanism Assembly (includes Item 9) |
|
- | |||||
| 12 | WP1120581 | Mechanism Delay (Replaces: 1120581) |
|
$ 213.07 | |||||
| 13 | 2152678 | Grille, Overflow (black) |
|
- | |||||
| 13 | 1126121 | Grille, Overflow (almond) |
|
- | |||||
| 13 | 1126120 | Grille, Overflow (white) |
|
- | |||||
| 14 | 987917 | Clip, Bearing (2) |
|
- | |||||
| 15 | 983697 | Bearing, Lever (3) |
|
- | |||||
| 16 | 983696 | Spring, Lever (2) |
|
$ 21.26 | |||||
| 17 | 2147165 | Shield, Wiring |
|
- | |||||
| 18 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 19 | 625834 | Spacer, Switch |
|
$ 7.99 | |||||
| 22 | WP4388152 | Water Fitting Assembly (Replaces: 2157744) |
|
$ 276.43 | |||||
| 24 | 2177144 | Lever Assembly, Ice Dispenser (white) |
|
$ 42.05 | |||||
| 24 | 2177145 | Lever Assembly, Ice Dispenser (almond) |
|
- | |||||
| 24 | 2177143 | Lever Assembly, Ice Dispenser (black) |
|
- | |||||
| 25 | 1119035 | Guide, Ice (black) |
|
- | |||||
| 25 | 1124730 | Guide, Ice (white) |
|
$ 19.06 | |||||
| 25 | 1126026 | Guide, Ice (almond) |
|
- | |||||
| 26 | 488892 | Screw |
|
- | |||||
| 27 | 2152724 | Slide, Light Switch (black) |
|
- | |||||
| 27 | 2152726 | Slide, Light Switch (white) |
|
- | |||||
| 27 | 2152727 | Slide, Light Switch (almond) |
|
- | |||||
| 29 | 2147131 | Lamp Holder |
|
- | |||||
| 31 | 488361 | Screw |
|
- | |||||
| 32 | 2147164 | Insulator, Control Bracket |
|
- | |||||
| 33 | 2147163 | Bracket, Control |
|
- | |||||
| 34 | WP22002263 | Bulb, Light (Replaces: 851389) |
|
Immediately | $ 13.66 | ||||
| 35 | WP489069 | Screw (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 36 | 489155 | Screw, |
|
- | |||||
| 38 | 2177148 | Lever Assembly, Water Dispenser (black) |
|
- | |||||
| 38 | 2177150 | Lever Assembly, Water Dispenser (almond) |
|
- | |||||
| 38 | 2177149 | Lever Assembly, Water Dispenser (white) |
|
$ 37.42 | |||||
| 39 | 2174331 | Plaque, Front Cover (white) |
|
- | |||||
| 39 | 2179207 | Plaque, Front Cover (black) |
|
- | |||||
| 39 | 2179206 | Plaque, Front Cover (almond) |
|
- | |||||
| 40 | 2179202 | Front Cover, Housing (includes Item 39) (almond) |
|
- | |||||
| 40 | 2179203 | Front Cover, Housing (includes Item 39) (black) |
|
- | |||||
| 40 | 2174310 | Front Cover, Housing (includes Item 39) (white) |
|
- | |||||
| 41 | 2147172 | Heat Shield, Frame |
|
- | |||||
| 45 | WP3400906 | Screw (Replaces: 489000) |
|
$ 7.84 | |||||
| 46 | WP2162361 | Switch, Micro (4) (Replaces: 2162361) |
|
Immediately | $ 27.34 |
