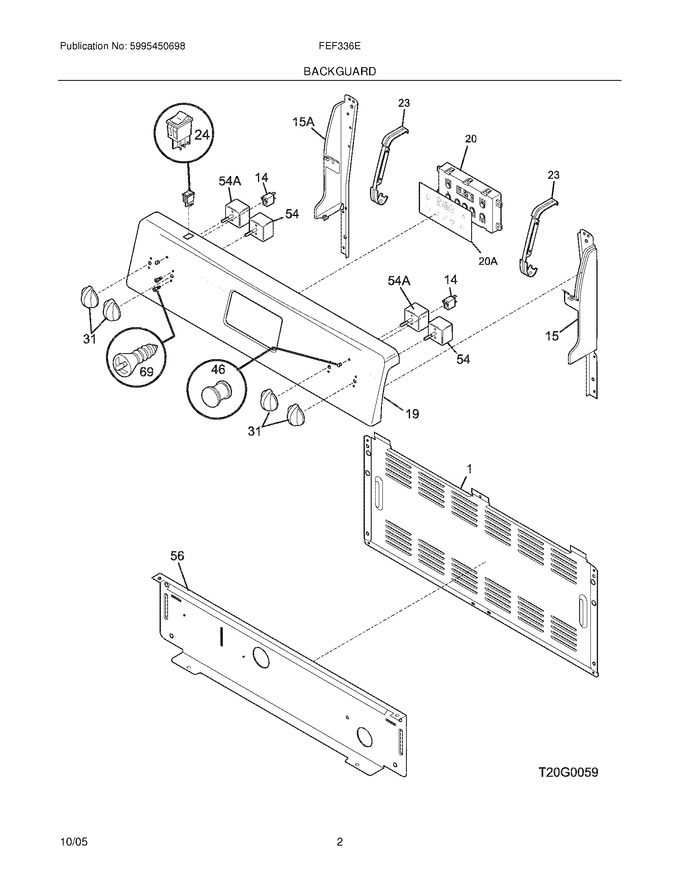

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 64.04
14	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 59.52
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316445201		Panel-backguard,white		Appelez-nous	-
23	316441600		Bracket-clock Mtg,black				$ 22.75
24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316246000)			Immediately	$ 17.92
31	316223000		Knob,control ,white			Immediately	$ 80.89
46	316040201		Lens,indicator Light ,red		Appelez-nous	-
56	316234029		Shield,backguard ,white ,inner   (Replaces: 316234012)				$ 96.86
69	5303288565		Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg				$ 3.47
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316220728		Overlay,clock ,white   (Replaces: 316220700)			Immediately	$ 43.82
F20	5304518660		Clock/timer,electronic ,es100   (Replaces: 316222807)			Immediately	$ 202.13
F54	316436000		Switch,infinite ,small Element			Immediately	$ 89.27
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 57.42
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13
