ED27PEXHW00 | Leon's : Appliance Model Lookup

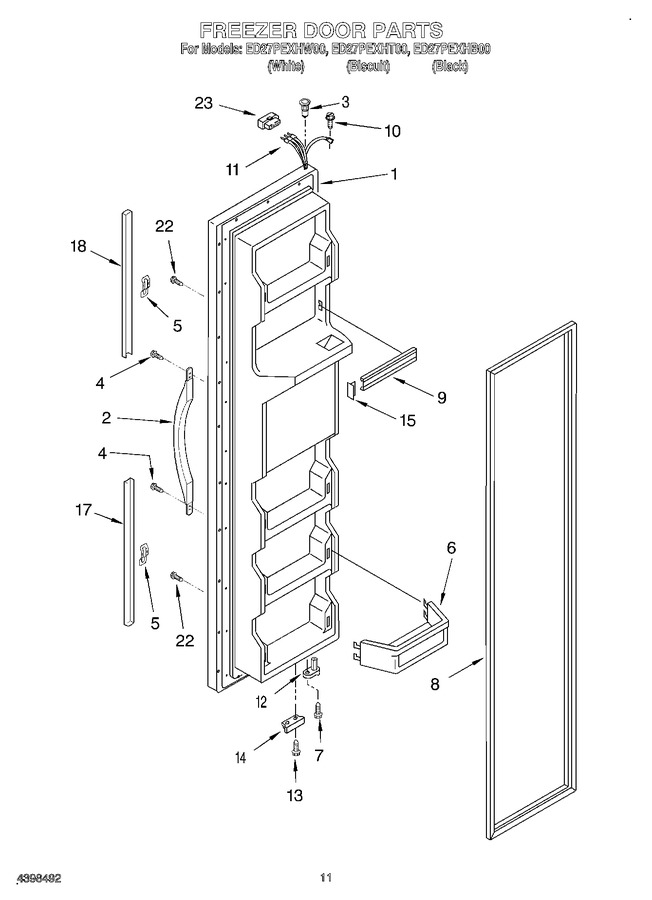

Diagram #	Part Number	Description	Availability	Ships	Price
1	2205866W	Freezer Door (includes Item 8 And Dispenser Front Parts) (white)	Appelez-nous	-
1	2205866T	Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)	Appelez-nous	-
1	2205866B	Freezer Door (includes Item 8 And Dispenser Front Parts) (black)	Appelez-nous	-
2	2186649T	Handle, Center (biscuit)	Appelez-nous	-
2	2186649B	Handle, Center (black)			$ 72.96
2	2186649W	Handle, Center (white)			$ 70.49
3	WP2182181	Thimble, Top (Replaces: 2182181)			$ 7.76
4	WP489491	Screw (Replaces: 489491)			$ 6.95
5	WP2195327	Clip (4) (Replaces: 2195327)			$ 7.40
6	2194501	Trivet, Shelf (4)	Appelez-nous	-
7	WP3400012	Screw (Replaces: 3400012)			$ 7.82
8	2159074	Door Gasket, Magnetic (repair) (mist Beige)			$ 310.19
8	2159082	Door Gasket, Magnetic (repair) (black)			$ 316.66
9	WPW10307490	Trim, Door Shelf (Replaces: 2195931)		Immediately	$ 23.11
10	WP489128	Screw (Replaces: 8281149)			$ 10.88
11	2183713	Wire Harness	Appelez-nous	-
12	WP2182179	Door Closer, Upper Cam (Replaces: 2182179)		Immediately	$ 6.39
13	WP489483	Screw (Replaces: 489420)			$ 10.87
14	2155331	Bracket, Door Stop	Appelez-nous	-
15	WP2156006	Plug-trim (Replaces: 2156006)		Immediately	$ 12.18
17	WP2194969B	Extension, Bottom (black) (Replaces: 2194969B)			$ 116.40
17	2194969T	Extension, Bottom (biscuit)	Appelez-nous	-
17	2194969W	Extension, Bottom (white)			$ 5.51
18	2194973W	Extension, Top (white)			$ 5.65
18	2194973T	Extension, Top (biscuit)	Appelez-nous	-
18	2194973B	Extension, Top (black)	Appelez-nous	-
22	WP3400852	Screw (Replaces: 3400852)			$ 9.84
23	WP2154473	Connector (Replaces: 2154473)			$ 23.65
