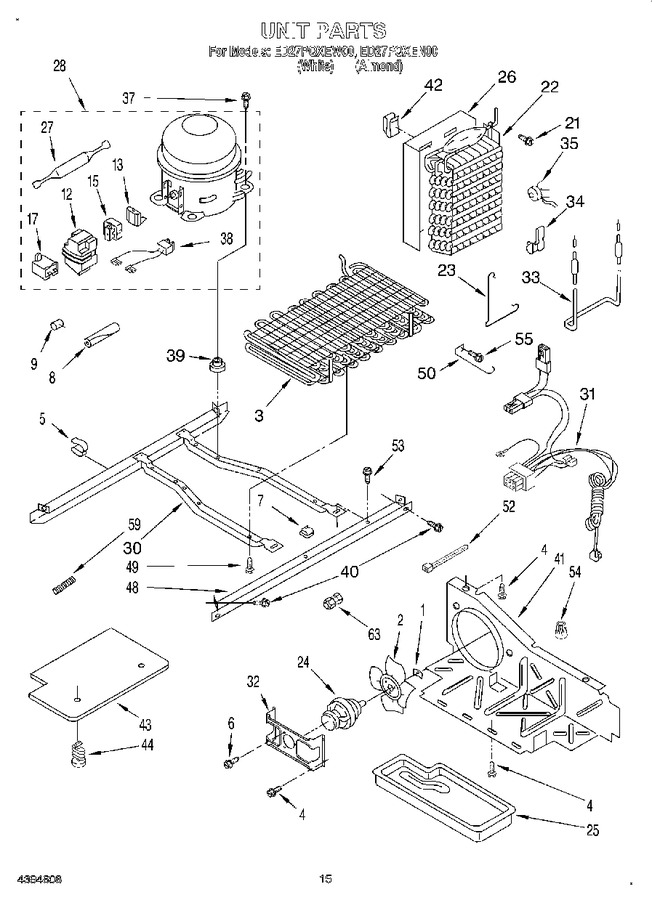

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.82
2	1108179		Fan, Blade				$ 49.54
3	2198177		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	934011		Clip, Tube (3)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.73
12	WP2162358		Cover   (Replaces: 2162358)				$ 90.75
13	WP2154697		Overload (includes Relay) Production   (Replaces: 2154697)				$ 130.73
15	N/A		Relay (see Overload)		Appelez-nous	-
17	2169137		Capacitor (service Compressor Only)		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489478)				$ 7.75
22	2164519		Evaporator		Appelez-nous	-
23	2161324		Clamp		Appelez-nous	-
24	W10822259		Fan, Motor   (Replaces: 2176336)			Immediately	$ 221.30
25	1110674		Tray, Evaporator		Appelez-nous	-
26	2149294		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 52.57
28	W10309994		Compressor (includes Items 12, 13, 15, 17, 27 & 38) (also Order)   (Replaces: 2183419)			Immediately	$ 612.90
28	876765		Tube Kit			Immediately	$ 86.33
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
31	2194746		Unit, Harness (includes Power Cord)		Appelez-nous	-
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.31
33	WP2323198		Heater, Defrost   (Replaces: 2176065)			Immediately	$ 90.70
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2176066)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.42
38	WP2172890		Wire Connector   (Replaces: 2172890)				$ 8.10
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.42
40	489340		Screw		Appelez-nous	-
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 96.38
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2182058		Unit Cover, Bottom		Appelez-nous	-
44	489396		Clip				$ 10.72
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 80.64
49	488624		Screw		Appelez-nous	-
50	1110663		Guard, Fan		Appelez-nous	-
52	WPW10339879		Strap   (Replaces: 2172840)				$ 7.90
53	WP489427		Screw   (Replaces: 489427)				$ 7.47
54	227991		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 21.16
59	983659		Spring-tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 91.35
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 130.71
63	WP4211117		Union   (Replaces: 2150347)				$ 9.96
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
63	978026		Valve, Access (5/16``)			Immediately	$ 128.09
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
