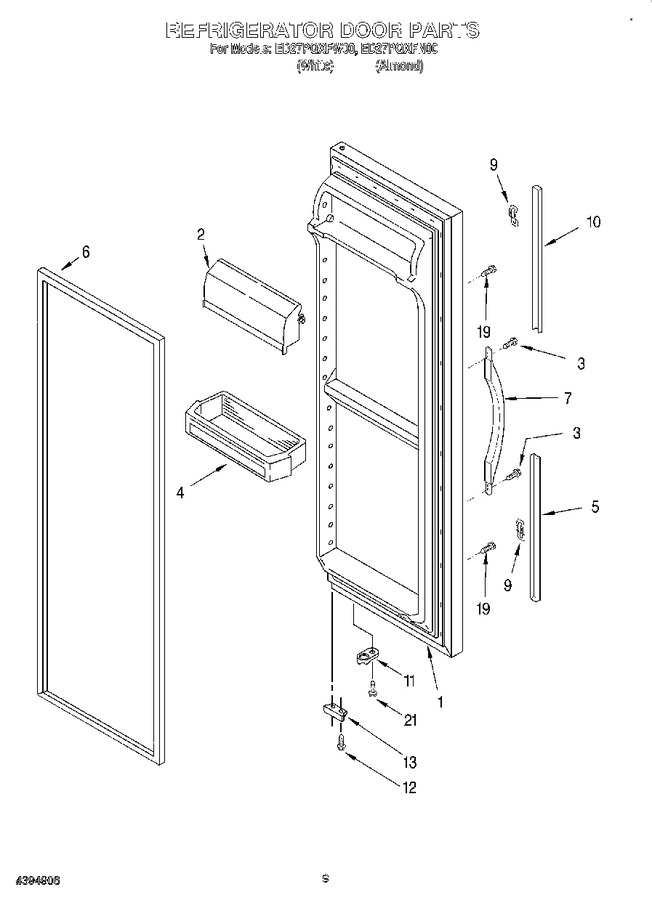

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194514W		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	2194514N		Refrigerator Door (includes Item 6) (almond)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 85.16
3	WP489491		Screw   (Replaces: 489491)				$ 6.95
4	2198129		Shelf Bin (4)		Appelez-nous	-
5	2194970N		Extension, Bottom (almond)		Appelez-nous	-
5	2194970W		Extension, Bottom (white)		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (repair)			Immediately	$ 317.14
7	2193345N		Handle, Center (almond)		Appelez-nous	-
7	2193345W		Handle, Center (white)		Appelez-nous	-
9	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
10	2194974W		Extension, Top (white)		Appelez-nous	-
10	2194974N		Extension, Top (almond)		Appelez-nous	-
11	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 27.36
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	2155331		Bracket, Door Stop		Appelez-nous	-
19	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
21	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
