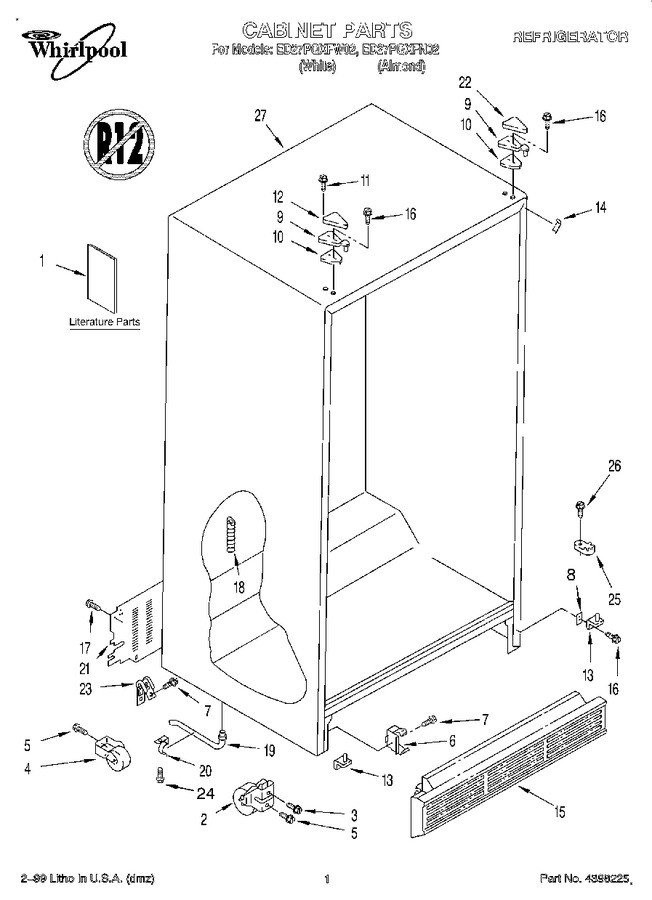

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2186560 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT628730 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | LIT2198461 | Literature Parts (energy Label) |
|
- | |||||
| 1 | LIT2186936 | Literature Parts (service & Wiring Sheet) |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 489456) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 8 | WP2181911 | Shim (Replaces: 2156056) |
|
$ 33.21 | |||||
| 9 | WP2196046 | Hinge, Top (2) (Replaces: 2196046) |
|
$ 104.44 | |||||
| 10 | 2196048 | Shim, Hinge Top |
|
- | |||||
| 11 | 489284 | Screw |
|
- | |||||
| 12 | 2150343 | Hinge Cover (almond) |
|
- | |||||
| 12 | 1129262 | Hinge Cover (white) |
|
$ 15.75 | |||||
| 13 | 8201707 | Hinge Bottom (2) (Replaces: 2171851) |
|
$ 88.90 | |||||
| 14 | 2196095 | Filler, Wrapper (almond) |
|
- | |||||
| 14 | 2196094 | Filler, Wrapper (white) |
|
- | |||||
| 15 | W10283947 | Grille (almond) (Replaces: 2198470N) |
|
$ 35.89 | |||||
| 15 | WPW10283946 | Grille (white) (Replaces: 2198470W) |
|
$ 143.52 | |||||
| 16 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 18 | W11566763 | Fitting, Drain (Replaces: 940139) |
|
Immediately | $ 50.90 | ||||
| 19 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 31.33 | ||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 21 | WP2188755 | Cover, Unit (Replaces: 2176140) |
|
$ 135.91 | |||||
| 22 | 1119787 | Hinge Cover (white) |
|
$ 22.50 | |||||
| 22 | 1119789 | Hinge Cover (almond) |
|
- | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 13.39 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 25 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.43 | ||||
| 26 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.87 | |||||
| 27 | N/A | Cabinet (not A Serviceable Part) |
|
- |
