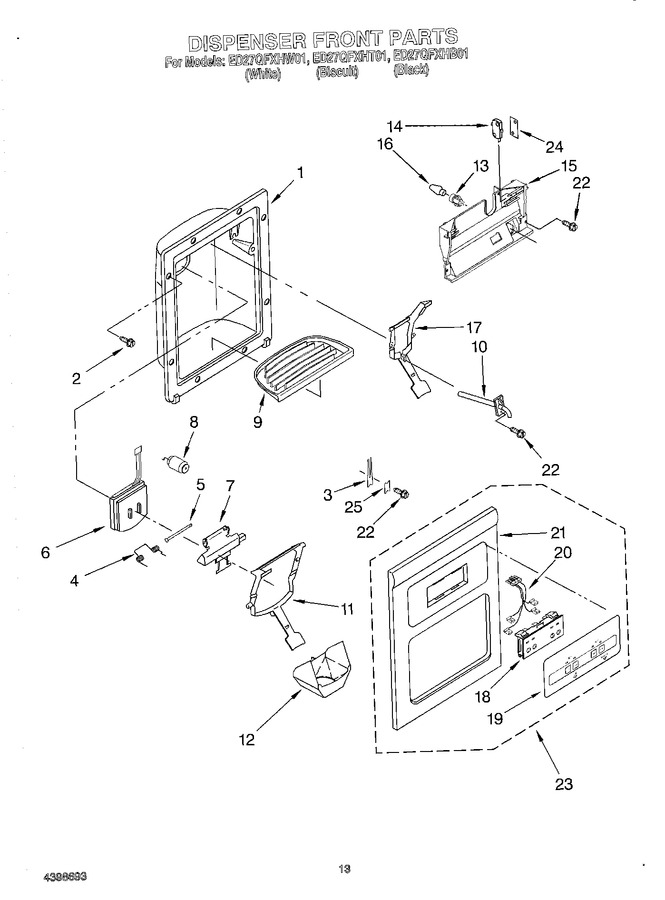

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
2	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180352)			Immediately	$ 24.69
7	2180208		Door Mechanism Assembly		Appelez-nous	-
8	2180223		Delay Mechanism		Appelez-nous	-
9	2183787T		Grille, Overflow (biscuit)				$ 28.13
9	2183787W		Grille, Overflow (white)				$ 28.40
9	2183787B		Grille, Overflow (black)				$ 29.36
10	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225)				$ 276.43
11	2195089T		Lever, Ice Dispenser (biscuit)				$ 51.43
11	2195089W		Lever, Ice Dispenser (white)		Appelez-nous	-
11	2195089B		Lever, Ice Dispenser (black)		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	2180200		Lamp Holder				$ 98.66
14	WP2162361		Switch (4)   (Replaces: 2162361)			Immediately	$ 27.34
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 24.39
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
17	WPW10152859		Lever, Water Dispenser (black)   (Replaces: 2195090B)			Immediately	$ 97.92
17	WPW10152858		Lever, Water Dispenser (white)   (Replaces: 2195090W)				$ 104.60
17	2195090T		Lever, Water Dispenser (biscuit)				$ 41.65
18	WP2180279		Switch Assembly (also Order No.19)   (Replaces: 2180279)				$ 254.66
19	2205772W		Overlay, Front Cover (white)		Appelez-nous	-
19	2205772T		Overlay, Front Cover (biscuit)		Appelez-nous	-
19	2205772B		Overlay, Front Cover (black)		Appelez-nous	-
20	2196198		Wire Assembly		Appelez-nous	-
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.84
23	2205774B		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
23	2205774T		Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit)		Appelez-nous	-
23	2205774W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
