SELECT A DIAGRAM

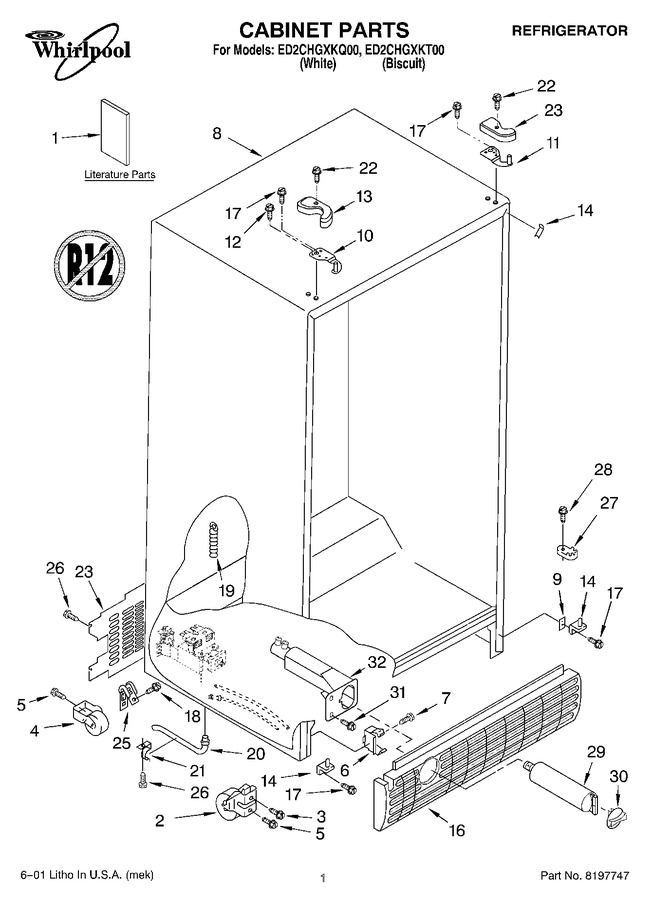

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2216248		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
1	LIT2219946		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT2216709		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	2174748		Front Roller (2)		Appelez-nous	-
3	W10850698		Screw   (Replaces: 3400517)				$ 11.88
4	WPW10250570		Roller (rear) (2)   (Replaces: 2196236)				$ 40.17
5	WP489427		Screw   (Replaces: 489427)				$ 7.47
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
7	WP489478		Screw   (Replaces: 489478)				$ 7.75
8	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
9	2209697		Shim				$ 41.25
10	WP2203770		Hinge Top (fc)   (Replaces: 2203770)				$ 95.52
11	WP2203771		Hinge Top (rc)   (Replaces: 2203771)				$ 98.22
12	WP489128		Screw   (Replaces: 8281149)				$ 10.88
13	2203407T		Hinge Cover (fc) (biscuit)		Appelez-nous	-
13	WP2203407W		Hinge Cover (fc) (white)   (Replaces: 2203407W)				$ 20.75
14	8201707		Hinge Bottom (2)   (Replaces: 2217075)				$ 88.90
15	2196094		Filler, Wrapper (white)		Appelez-nous	-
15	2196150		Filler, Wrapper (biscuit)		Appelez-nous	-
16	W10802713		Grille (white)   (Replaces: 2198467W)				$ 121.84
16	W10802713		Grille (biscuit)   (Replaces: 2198467T)				$ 121.84
17	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
19	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 50.90
20	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 31.33
21	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 10.74
22	WP8281227		Screw   (Replaces: 8281227)				$ 10.44
23	WP2188756		Cover, Unit   (Replaces: 2204202)				$ 141.67
24	WP2203408W		Hinge Cover (rc) (white)   (Replaces: 2203408W)				$ 20.97
24	2203408T		Hinge Cover (rc) (biscuit)		Appelez-nous	-
25	549193		Clamp-service Cord				$ 13.39
26	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
27	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.43
28	WP489483		Screw   (Replaces: 489483)				$ 10.87
29	EDR5RXD1B		Filter, Water   (Replaces: 2203220)			Immediately	$ 49.99
30	WP2186494W		Cap, Water Filter (white)   (Replaces: 2186494W)				$ 55.72
30	WP2186494T		Cap, Water Filter (biscuit)   (Replaces: 2186494T)				$ 11.88
31	WP489500		Screw   (Replaces: 489500)				$ 7.78
32	WP2186443		Housing, Water Filter   (Replaces: 2186443)			Immediately	$ 97.35

    View Diagram in Separate Window       Print Part List
