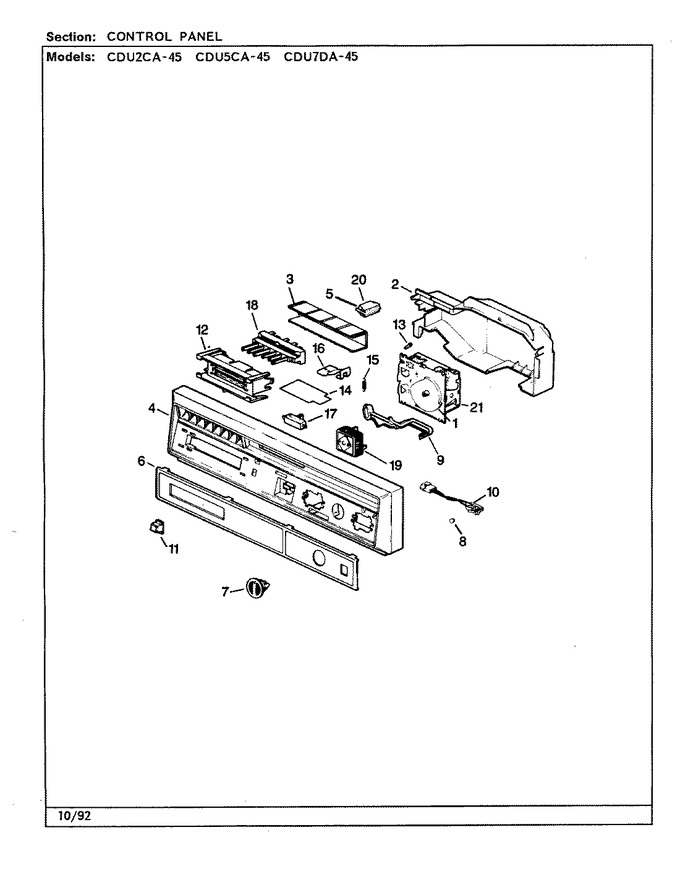

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195-0010		Timer, Cam		Appelez-nous	-
2	03000099		Cover Electrical		Appelez-nous	-
3	2275-0007		Cover, Switch		Appelez-nous	-
4	Y03000101		Escutcheon		Appelez-nous	-
5	Y03000072		Terminal, Housing		Appelez-nous	-
6	03000027		Insert, Escutcheon		Appelez-nous	-
7	Y03000020		Knob Assy		Appelez-nous	-
8	03000023		Lens		Appelez-nous	-
9	2660-0003		Lever, Detergent Timer		Appelez-nous	-
10	03000022		Pilot Light				$ 3.10
11	03000019		Pushbutton		Appelez-nous	-
12	2940-0003		Retainer, Switch		Appelez-nous	-
13	3005-0032		Screw		Appelez-nous	-
14	3030-0006		Shield, Switch		Appelez-nous	-
15	3070-0007		Spring, Det. Trip		Appelez-nous	-
16	03000194		Switch		Appelez-nous	-
17	3135-0006		Switch, Interlock		Appelez-nous	-
18	3135-0078		Switch, Pushbutton		Appelez-nous	-
19	3135-0004		Switch, Cycling		Appelez-nous	-
20	Y03000076		Terminal		Appelez-nous	-
21	3170-0019		Timer		Appelez-nous	-
