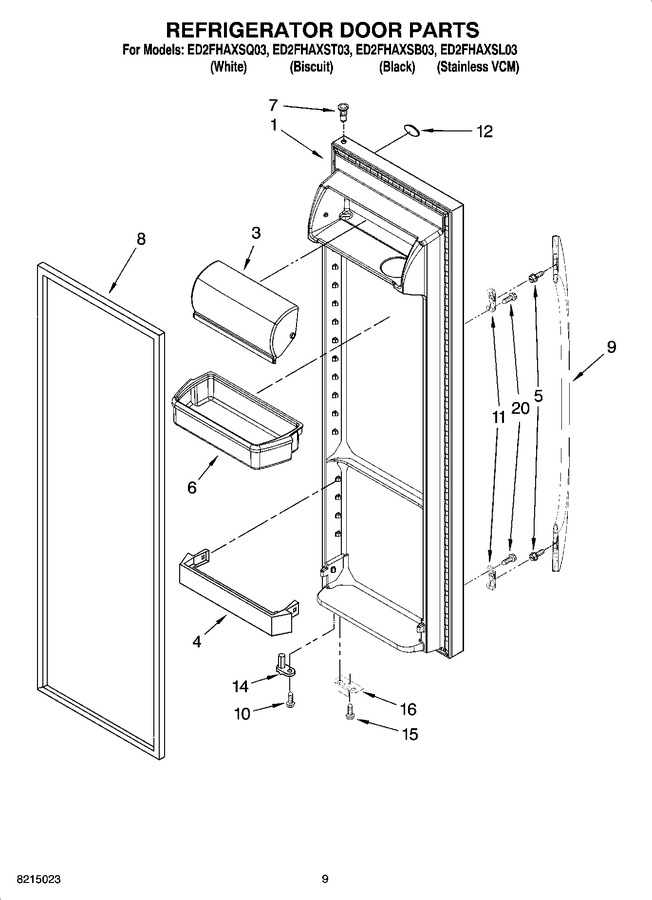

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Control Parts


12 - Air Flow Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2307101T		Refrigerator Door (includes Item 8) (biscuit)		Appelez-nous	-
1	2307101B		Refrigerator Door (includes Item 8) (black)		Appelez-nous	-
1	2307101LG		Refrigerator Door (includes Item 8) (stainless Vcm)		Appelez-nous	-
1	2307101W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	8533920		Screw				$ 5.27
6	WPW10321304		Door Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 317.32
8	2159081		Door Gasket, Magnetic (black)   (Replaces: 2221311)				$ 319.60
9	W10187087		Handle (biscuit)   (Replaces: 2313345T)		Appelez-nous	-
9	2313345W		Handle (white)		Appelez-nous	-
9	W10187086		Handle (black)   (Replaces: 2313345B)				$ 377.97
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	WP2255411		Clip   (Replaces: 2255411)				$ 34.81
12	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
16	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
20	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
