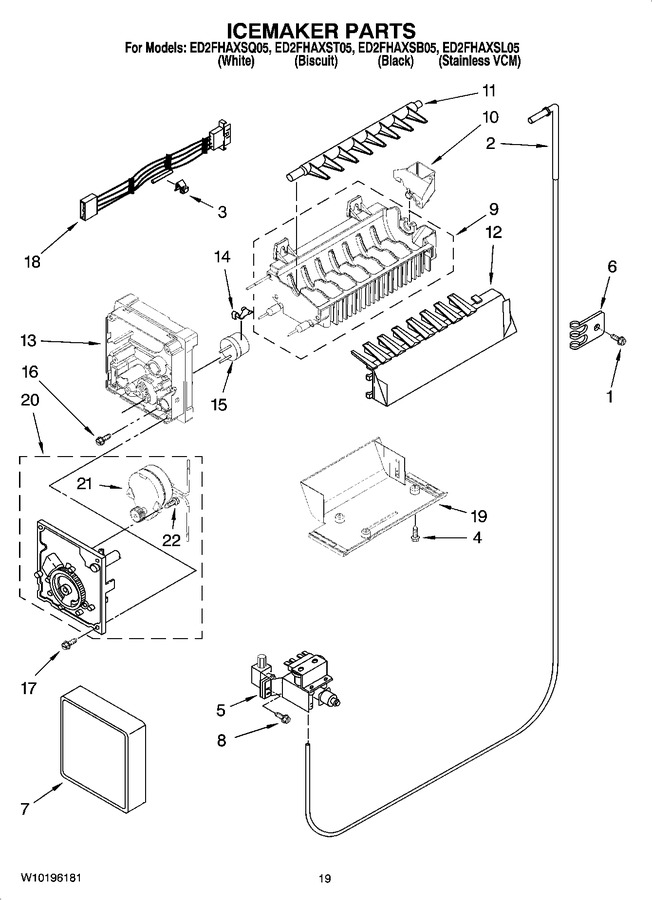

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | WPW10140630 | Fitting, Water Tube (Replaces: W10140630) |
|
$ 135.78 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 5 | W10822681 | Filter Valve Asm (Replaces: 2188709) |
|
Immediately | $ 162.93 | ||||
| 6 | WP488366 | Clip, Tube (Replaces: 2208136) |
|
$ 11.18 | |||||
| 7 | WPW10289690 | Cover (Replaces: 2174358) |
|
Immediately | $ 8.40 | ||||
| 8 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 9 | WPW10122550 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: W10122550) |
|
$ 207.28 | |||||
| 10 | WPW10272168 | Cup-water Fill (Replaces: 2304969) |
|
$ 72.84 | |||||
| 11 | 626753 | Ejector |
|
$ 13.94 | |||||
| 12 | W10297245 | Ice Striper (Replaces: 2212318) |
|
$ 72.98 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 14 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 627985) |
|
$ 109.18 | |||||
| 16 | 8533917 | Screw |
|
$ 13.37 | |||||
| 17 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 18 | WPW10309401 | Harness, Wiring (Replaces: 2187484) |
|
$ 126.27 | |||||
| 19 | W10131253 | Bracket, Icemaker Mounting |
|
- | |||||
| 20 | 8201515 | Module Assembly (includes Items 21 & 22) |
|
Immediately | $ 141.64 | ||||
| 22 | 489136 | Screw |
|
$ 10.29 | |||||
| 100 | WPW10190961 | Complete Icemaker Assembly (Replaces: W10122503) |
|
Immediately | $ 188.94 | ||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 799340 | Paint, Bulk (1qt.) (black) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.07 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.18 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 173.95 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 89.66 | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 57.04 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 |
