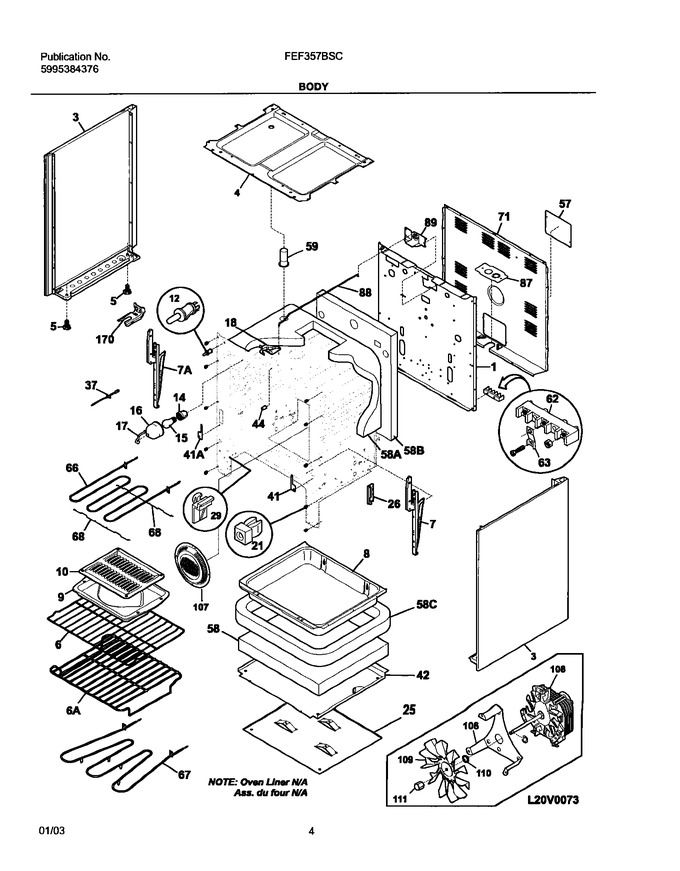

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201300		Back,main		Appelez-nous	-
3	316230115		Panel,bodyside ,white ,lh		Appelez-nous	-
3	316230114		Panel,bodyside ,white ,rh		Appelez-nous	-
4	5304522901		Burner Box   (Replaces: 316201401)				$ 95.21
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 114.56
7	316216500		Hinge,oven Door ,rh				$ 89.26
8	316201501		Panel,sump ,oven Bottom				$ 229.64
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	3014099		Spacer,bodyside				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
26	316206300		Support,chassis ,(2)				$ 21.91
29	3051162		Glide-drawer, Front			Immediately	$ 9.13
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	316206200		Shield,wool ,lower		Appelez-nous	-
44	316246500		Spacer,oven Door				$ 34.39
57	316081100		Cover,access		Appelez-nous	-
58	316240300		Insulation,oven Bottom		Appelez-nous	-
59	316073604		Tube,oven Vent		Appelez-nous	-
63	316208500		Plate,grounding Strap		Appelez-nous	-
66	316203301		Element,broil			Immediately	$ 202.65
68	316203400		Support,broil Element				$ 78.76
71	316015810		Shield-rear Wall,galv Steel		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 80.33
106	316026600		Bracket,motor Mtg		Appelez-nous	-
107	316026701		Cover,fan				$ 454.32
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 32.34
110	316008401		Washer,fan Motor   (Replaces: 316136500)				$ 12.60
111	316136600		Nut,fan Retainer			Immediately	$ 21.26
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 14.32
170	316112500		Template,anti-tip				$ 3.94
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 21.01
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316240102		Insulation,oven Back		Appelez-nous	-
58C	316240400		Insulation,oven Sump		Appelez-nous	-
6A	316262900		Rack,oven Sump				$ 237.20
7A	316216501		Hinge,oven Door ,lh				$ 94.71
F108	316136300		Motor,fan				$ 42.95
F12	316209901		Switch,oven Light/door				$ 58.17
F18	316405800		Latch,oven Door   (Replaces: 316213900)			Immediately	$ 63.04
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 63.65
F62	5303935061		Terminal Block Kit		Appelez-nous	-
F67	316202200		Element,bake				$ 213.41
F89	5304528973		Motor,latch   (Replaces: 316137500)			Immediately	$ 58.16
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 12.60
NI	316085600		Insulator		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13
NI	316021131		Screw,bodyside ,8-18 X 11/16 ,white		Appelez-nous	-
NI	316253250		Wiring Harness,main		Appelez-nous	-
NI	316231800		Cover,hole ,conv. Element		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 14.96
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
NI	5308014215		Screw				$ 2.53
