SELECT A DIAGRAM

01 - Cover


03 - Backguard

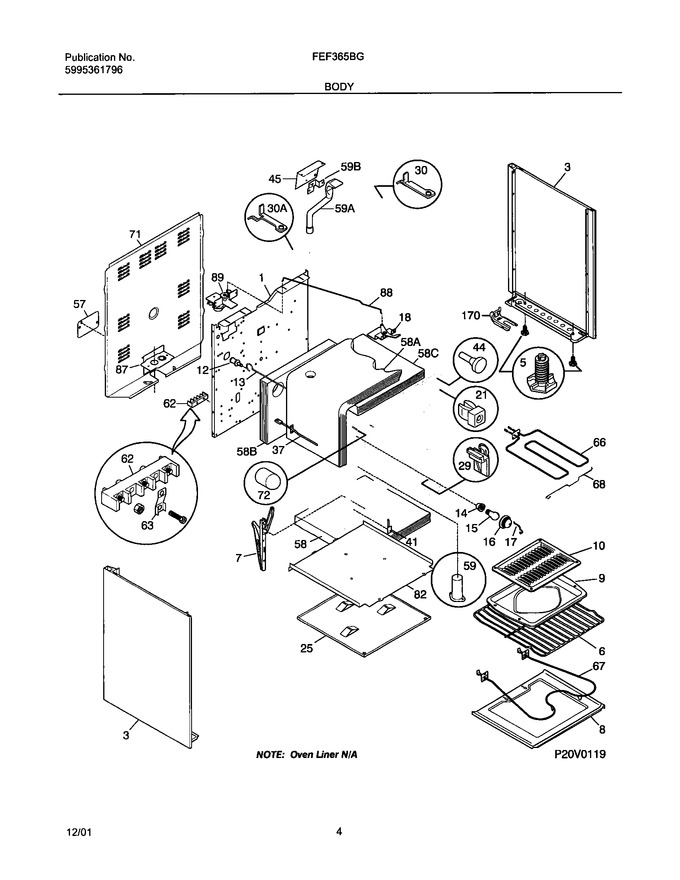

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316080805		Panel,main Back ,dipped ,black ,short		Appelez-nous	-
3	316081036		Panel,bodyside ,almond ,rh		Appelez-nous	-
3	316081037		Panel,bodyside ,almond ,lh		Appelez-nous	-
5	316129200		Screw,leveling ,plastic ,with Stop				$ 10.92
6	316067902		Rack,oven			Immediately	$ 114.56
7	316007002		Hinge-oven Door, (2)				$ 244.07
8	3203540		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316026800		Rod-light Switch				$ 36.86
14	316116400		Receptacle,oven Light			Immediately	$ 62.33
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 19.07
17	316087500		Retainer,lens				$ 63.00
21	3014099		Spacer,bodyside				$ 3.62
25	3200848		Shield,heat ,lower		Appelez-nous	-
29	3051162		Glide-drawer, Front			Immediately	$ 9.13
41	3131570		Cover Hinge Cutout				$ 7.35
44	3131903		Bumper				$ 61.51
45	316066100		Shield-wire, S/t Vent		Appelez-nous	-
57	316081100		Cover,access		Appelez-nous	-
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316073602		Tube-oven Vent				$ 53.35
63	5301145190		Plate,grounding Strap		Appelez-nous	-
66	5303051140		Element-broil,2950 W				$ 225.23
68	316075300		Support-element, Broil		Appelez-nous	-
71	316015810		Shield-rear Wall,galv Steel		Appelez-nous	-
72	5303285692		Cover-rod End,lt Switch Rod		Appelez-nous	-
82	5303289913		Shield,insulation		Appelez-nous	-
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316026400		Rod,auto Latch				$ 21.79
170	316116000		Screw`concrete Tpg `1.75 Inch ,anti-tip Brkt				$ 14.32
170	316112500		Template,anti-tip				$ 3.94
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 21.01
170	316112005		Kit-anti-tip Bracket (complete W/template & Screw)   (Replaces: 5303935180)			Immediately	$ 21.01
58A	316047708		Insulation,2`` ,oven Wrapper				$ 222.56
58B	316054202		Insulation, 1`` ,oven Back				$ 85.10
59A	316023600		Tube, Oven Vent, Upper		Appelez-nous	-
59B	316040100		Bracket-mounting,vent Tube		Appelez-nous	-
F12	316027701		Switch-oven Light		Appelez-nous	-
F18	316036300		Latch-door		Appelez-nous	-
F37	5304497424		Probe-oven Temp   (Replaces: 316134900)			Immediately	$ 42.58
F62	5303935061		Terminal Block Kit		Appelez-nous	-
F67	316075103		Element-bake			Immediately	$ 47.07
F89	316028101		Motor,latch		Appelez-nous	-
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13
NI	316001386		Wiring Harness,main		Appelez-nous	-
NI	316045000		Clip,wiring Harness ,green ,main Top		Appelez-nous	-
NI	3203550		Plug,button ,oven Bottom			Immediately	$ 16.91
NI	316101600		Shield,smoothtop Vent		Appelez-nous	-
NI	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
NI	5303321321		Paint,touch-up ,black   (Replaces: 5303305345)			Immediately	$ 24.41
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316205500		Nut, Hex, 10-32   (Replaces: 5303308427)				$ 12.60
NI	316085600		Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
