SELECT A DIAGRAM

01 - Top And Cabinet Parts

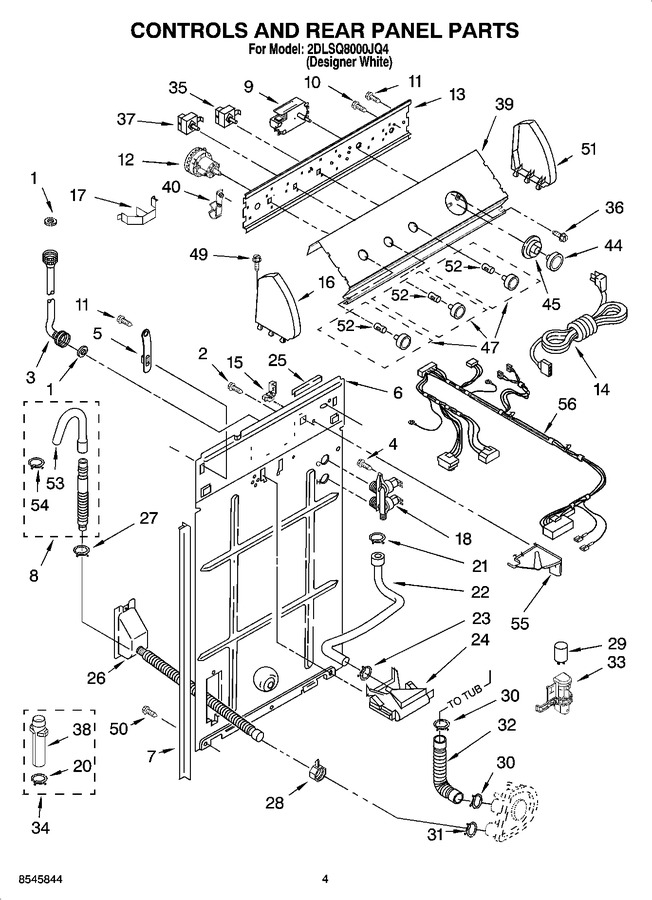

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Water System Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.70
2	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.95
3	WP89503		Hose, Water Inlet (blue Coupler)   (Replaces: 8571377)			Immediately	$ 24.09
3	WP89503		Hose, Water Inlet (red Coupler)   (Replaces: 8571378)			Immediately	$ 24.09
4	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.86
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.78
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 26.26
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 36.89
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 60.90
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 62.34
9	WP3954726		Timer, Control (50 Hz.) (motor Not A Service Part)   (Replaces: 3954726)				$ 378.57
10	3179795		Screw, Ground		Appelez-nous	-
11	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
12	W10820051		Switch, Water Level   (Replaces: 3366848)			Immediately	$ 169.68
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 116.19
14	661661		Cord, Power (includes Illus. 15)				$ 25.46
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	8271365		Cap, End (l.h.)		Appelez-nous	-
17	8055003		Clip, Harness & Pressure Hose				$ 36.24
18	285805		Valve, Water Mixing   (Replaces: 3952164)			Immediately	$ 55.08
20	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 8.40
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 50.46
25	303294		Edge Protector		Appelez-nous	-
26	WPW10358151		Anchored Drain Hose Assembly   (Replaces: 8317959)				$ 105.93
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 8.52
28	3976395		Clamp, Hose (mounting)				$ 11.96
29	WP8572717		Capacitor, Motor Start   (Replaces: 8572717)			Immediately	$ 80.14
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.81
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 8.39
32	285871		Hose, Pump To Tub   (Replaces: 3951449)			Immediately	$ 26.68
33	8318046		Clip, Capacitor				$ 79.31
34	285750		Kit, Adapter (includes Illus. Nos. 20 & 38)		Appelez-nous	-
35	3949185		Switch, Water Temperature				$ 181.19
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.96
37	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 129.76
38	3363920A		Adapter-drain Hose   (Replaces: 3363920)				$ 8.79
39	3954173		Panel, Console		Appelez-nous	-
40	8317975		Retainer, Harness				$ 5.86
44	W10807860		Knob, Timer   (Replaces: 3957824)			Immediately	$ 49.97
45	WP3957849		Dial, Timer   (Replaces: 3957849)				$ 45.78
47	WP3957799		Knob, Control   (Replaces: 3957799)				$ 52.44
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.11
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.82
51	8271359		Cap, End (r.h.)		Appelez-nous	-
52	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.81
53	WP3357027		Nozzle, Hose Drain   (Replaces: 3357027)				$ 93.20
54	WP3357331		Clamp, Hose   (Replaces: 3366913)				$ 7.56
55	8539874		Shield, Suds				$ 7.01
56	8541756		Miscellaneous Parts Bag		Appelez-nous	-
56	3956703		Harness, Wiring (for Detail See Pages 10 & 11)		Appelez-nous	-
56	N/A		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
