01 - Body
02 - Door
03 - Oven/base
04 - Top Assembly
05 - Wiring Information
New Model Search:

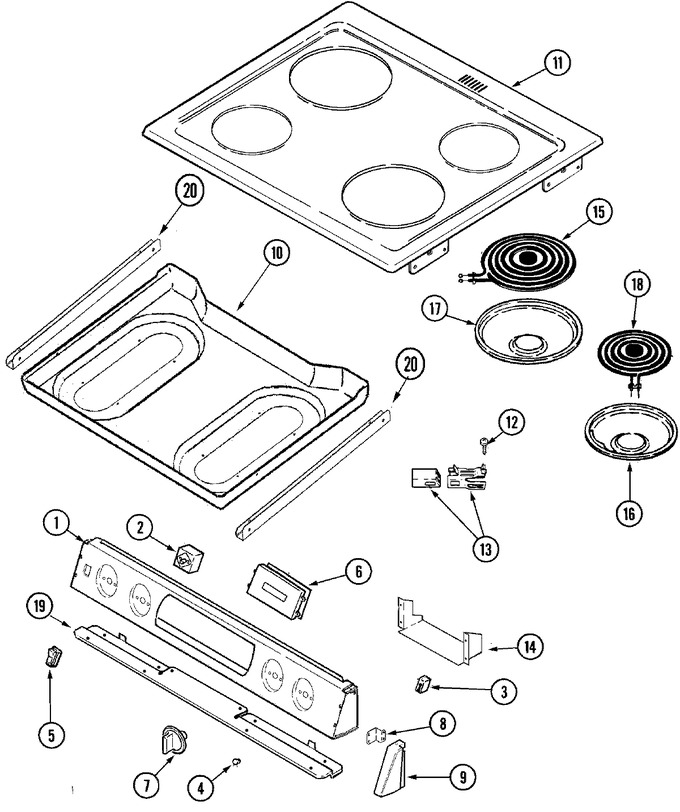

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74004240 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 10 |
|
Immediately | $ 39.00 | |||
| 2 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 10 |
|
Immediately | $ 74.78 | |||
| 2 | WP7101P309-60 | Screw (Replaces: 7101P309-60) | 10 |
|
Immediately | $ 7.30 | |||
| 3 | WP74004153 | Light, Indicator (Replaces: 74004153) | 10 |
|
Immediately | $ 8.91 | |||
| 4 | WP7730P011-60 | Lens, Indicator Light (Replaces: 7730P011-60) | 10 |
|
$ 6.02 | ||||
| 5 | 74008717 | Switch, Rocker (wht) (Replaces: 74003364) | 10 |
|
$ 84.80 | ||||
| 6 | 74004253 | Clock (wht) | 10 |
|
- | ||||
| 6 | 74004102 | Overlay, Clock (wht) | 10 |
|
- | ||||
| 7 | WP74003373 | Knob, Switch (wht) (Replaces: 74003373) | 10 |
|
$ 18.91 | ||||
| 8 | 74004186 | Bracket, End Cap | 10 |
|
- | ||||
| 8 | 74005671 | Bracket, End Cap | 16 |
|
- | ||||
| 8 | W11233072 | Screw (Replaces: 74004208) | 10 |
|
Immediately | $ 14.72 | |||
| 9 | 74004604 | Cap, End (lt-wht) | 11 |
|
- | ||||
| 9 | 74004603 | Cap, End (rt-wht) | 11 |
|
- | ||||
| 9 | 74004198 | Cap, End (rt-wht) | 10 |
|
- | ||||
| 9 | 74004821 | Cap, End (wht-rt) | 13 |
|
- | ||||
| 9 | 74004199 | Cap, End (lt-wht) | 10 |
|
- | ||||
| 9 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 10 |
|
$ 13.87 | ||||
| 9 | 74004822 | Cap, End (wht-lt) | 13 |
|
- | ||||
| 10 | W10124350 | Not Required Part Or See Note Nut Not Required | 19 |
|
- | ||||
| 10 | 7103P125-60 | Nut | 10 |
|
- | ||||
| 10 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 10 |
|
Immediately | $ 8.20 | |||
| 10 | 74006046 | Bottom, Burner Box | 19 |
|
- | ||||
| 10 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 14.72 | |||
| 10 | 74004251 | Bottom, Burner Box | 10 |
|
- | ||||
| 11 | 74004248 | Top, Main (wht) | 10 |
|
- | ||||
| 11 | 74007600 | Top, Main (wht) | 16 |
|
- | ||||
| 12 | WP74004005 | Screw (Replaces: 7118P013-60) | 10 |
|
$ 8.66 | ||||
| 13 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 10 |
|
Immediately | $ 31.61 | |||
| 14 | 74004246 | Insulator, Fiber Board | 10 |
|
- | ||||
| 15 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 23 |
|
Immediately | $ 193.62 | |||
| 15 | WPW10345410 | Element, Surface (8``) (Replaces: 74007156) | 19 |
|
Immediately | $ 193.62 | |||
| 15 | WP12001560 | Element, Surface (8``) (Replaces: 74004089) | 10 |
|
$ 200.87 | ||||
| 16 | W10291024 | Bowl, Drip (6`` Gry-solid) (Replaces: 74003440) | 10 |
|
Immediately | $ 64.99 | |||
| 17 | W10291024 | Bowl, Drip (8`` Gry-solid) (Replaces: 74003441) | 10 |
|
Immediately | $ 64.99 | |||
| 18 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 23 |
|
Immediately | $ 173.17 | |||
| 18 | WPW10259868 | Element, Surface (6``) (Replaces: 74007157) | 19 |
|
Immediately | $ 173.17 | |||
| 18 | WP12001559 | Element, Surface (6``) (Replaces: 74004090) | 10 |
|
$ 164.78 | ||||
| 19 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 14.72 | |||
| 19 | 74004185 | Support, Control Panel | 10 |
|
- | ||||
| 20 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 19 |
|
Immediately | $ 14.72 | |||
| 20 | 74005822 | Bracket, Support | 19 |
|
- | ||||
| NI | 74004250 | Harness, Sensor & Lock | 10 |
|
- | ||||
| NI | 12001323 | Wire/terminal Kit | 10 |
|
- | ||||
| NI | 74004247 | Manual, Use & Care | 10 |
|
- | ||||
| NI | 16010161 | Manual, Srvc Elec/gas Range | 10 |
|
- |
