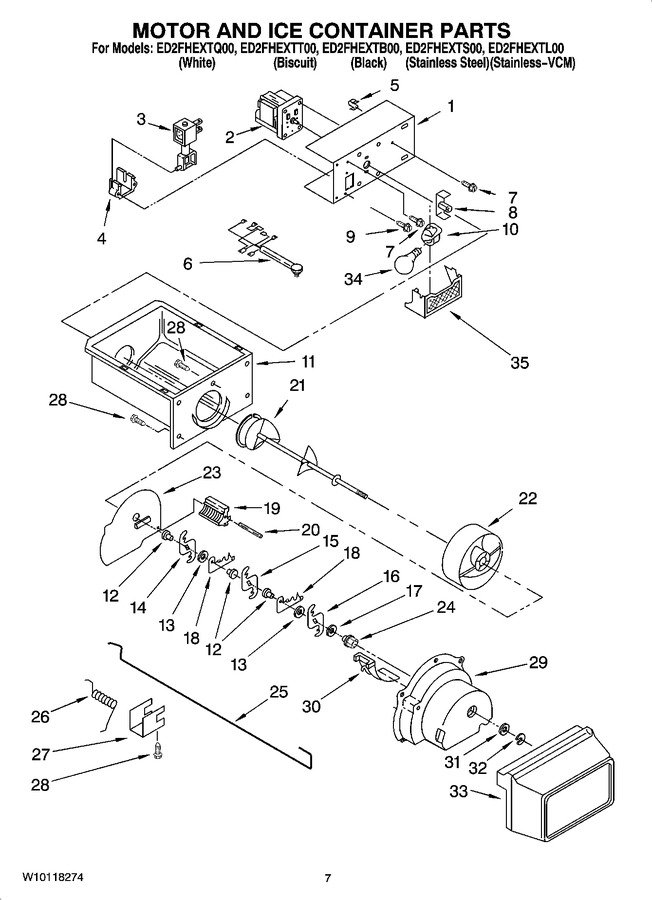

05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10284487		Bracket, Motor   (Replaces: 2254588)				$ 119.81
2	WP2188242		Motor, Dispenser   (Replaces: 2188385)				$ 387.12
3	WP2152713		Solenoid Assembly   (Replaces: 2152713)				$ 250.11
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 10.87
5	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
6	2311639		Wiring Assembly, Ice Dispenser   (Replaces: 2206501)				$ 147.17
7	WP489399		Screw   (Replaces: 489399)				$ 7.30
8	WPW10169511		Coupling, Motor   (Replaces: 2205716)				$ 24.51
9	WP489478		Screw   (Replaces: 489478)				$ 8.18
10	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
11	WP2196089		Ice Container   (Replaces: 2196089)				$ 220.24
12	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 11.74
13	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 14.77
14	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 90.87
15	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 91.00
16	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 91.00
17	489235		Washer, Plain				$ 8.05
18	1119009		Blade, Fixed (2)				$ 72.21
19	2157405		Block, Blade				$ 22.33
20	489229		Roll Pin				$ 48.47
21	W10422851		Auger   (Replaces: 2196295)				$ 174.14
22	4388736		Drum   (Replaces: 2305377)				$ 96.97
23	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 34.85
24	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.90
25	W11596045		Control Arm   (Replaces: 2155231)				$ 35.51
26	1119020		Spring, Return				$ 19.13
27	1119021		Retainer Clip, Rod				$ 10.96
28	WP488787		Screw   (Replaces: 488886)				$ 11.26
29	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 130.65
30	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.95
31	489234		Washer, Plain				$ 14.04
32	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.78
33	2171709		Front Cover, Ice Container				$ 49.81
34	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
35	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 95.91
100	WPW10312301		Ice Container (complete)   (Replaces: 2209779)				$ 430.90
