SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

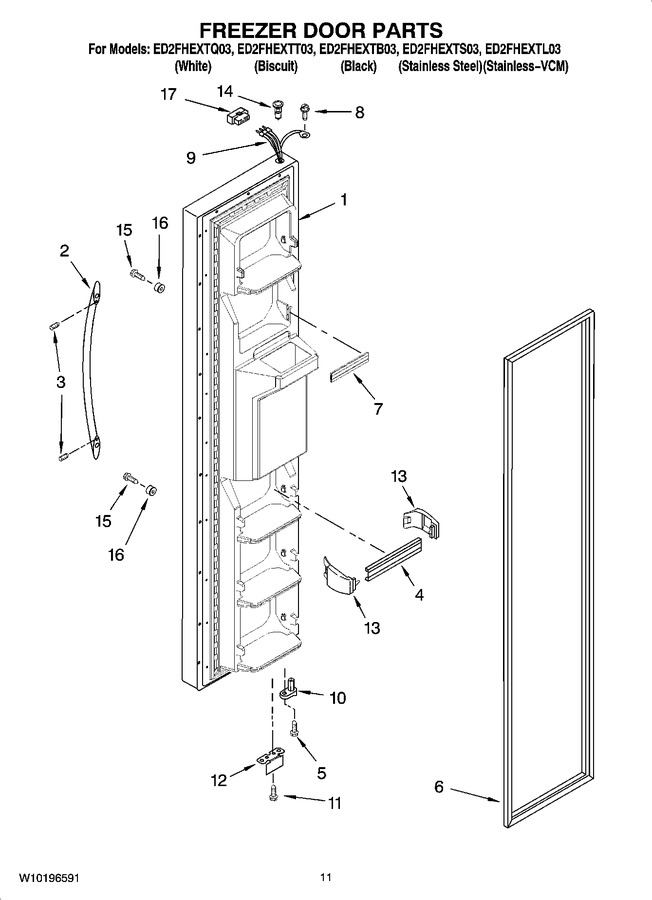

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2326301T		Freezer Door (includes Item 6 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2326301B		Freezer Door (includes Item 6 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2326301S		Freezer Door (includes Item 6 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2326301LG		Freezer Door (includes Item 6 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
1	2326301W		Freezer Door (includes Item 6 And Dispenser Front Parts) (white)		Appelez-nous	-
2	WP2254600W		Handle (white)   (Replaces: 2254600W)				$ 235.14
2	2254600T		Handle (biscuit)		Appelez-nous	-
2	WP2254600B		Handle (black)   (Replaces: 2254600B)				$ 208.77
2	2254600S		Handle (stainless)				$ 106.71
3	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
4	2313198K		Trim, Door (4)		Appelez-nous	-
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
6	2159080		Door Gasket, Magnetic (black)   (Replaces: 2221312)				$ 310.39
7	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
8	WP489128		Screw   (Replaces: 488500)				$ 10.88
9	2311642		Wire Harness   (Replaces: 2206602)				$ 217.92
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
13	2195917		End Cap (8)		Appelez-nous	-
14	WP2182181		Thimble, Top (for White, Black, Biscuit And Stainless Vcm Models)   (Replaces: 2182181)				$ 7.76
14	2301049		Thimble-top (for Stainless Steel Model)				$ 75.42
15	WP488163		Screw   (Replaces: 488208)				$ 7.54
16	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
17	WP2154473		Connector   (Replaces: 2154473)				$ 23.65

    View Diagram in Separate Window       Print Part List
