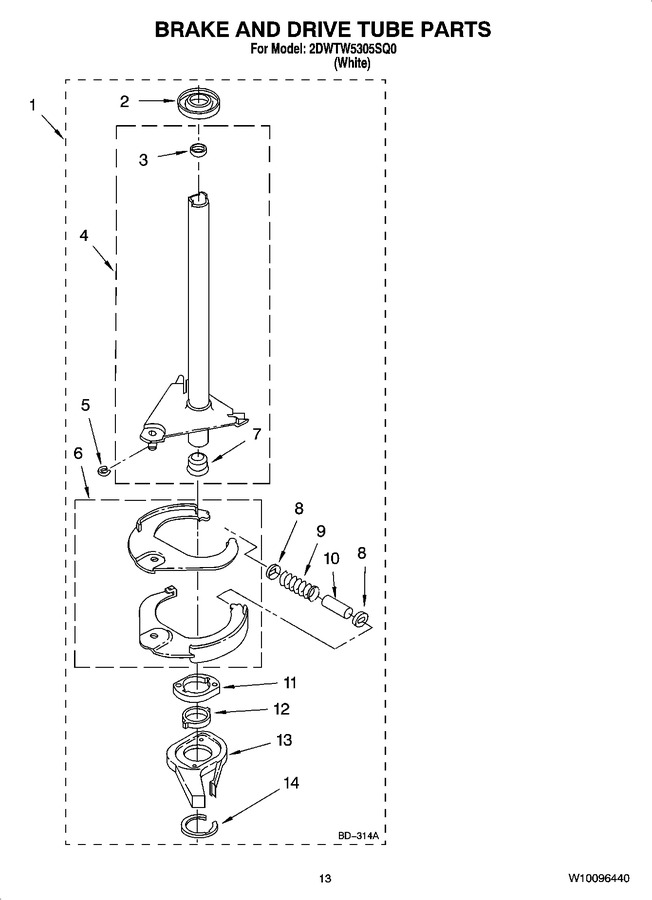

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10820043 Brake And Drive Tube (complete)   (Replaces: 388951) In-Stock Immediately $ 217.31

2 WP62658 Ring, Thrust   (Replaces: 62658) In-Stock Immediately $ 12.41

3 WP356427 Seal, Drive Tube   (Replaces: 356427) In-Stock Immediately $ 7.19

4 WP64208 Tube, Basket Drive (includes Illus. 3, 4, 5, & 9)   (Replaces: 64027) Special Order $ 302.54

5 W10083190 Ring, Retaining   (Replaces: 64035) Special Order $ 11.14

6 285438 Shoe, Brake (2)   (Replaces: 64232) Special Order $ 137.38

7 62703 ``t`` Bearing, Spin Tube In-Stock Immediately $ 277.74

8 285658 Cap, Brake Spring (2)   (Replaces: 3353956) Special Order $ 10.68

9 WP62647 Spring, Brake   (Replaces: 62647) Special Order $ 6.84

10 285658 Sleeve, Brake Spring   (Replaces: 3355360) Special Order $ 10.68

11 WP8546461 Cam, Brake Release   (Replaces: 661516) Special Order $ 8.31

12 WP63022 Sleeve, Cam   (Replaces: 63022) Special Order $ 45.89

13 285790 Driver, Brake Cam   (Replaces: 64194) In-Stock Immediately $ 43.24

14 285208 Lubricant (use Only In Brake Shoe Assembly On Roller & Pin Special Order $ 41.86

14 W11033823 Ring, Retaining   (Replaces: 90368) Special Order $ 12.46

WP285195 Sealer, Gasket (20 Fl. Oz.) (6 Ml)   (Replaces: 285195) In-Stock Immediately $ 104.39

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

280130 Drain Hose Adapter Kit Appelez-nous -
40922 Drain Hose Extension Kit   (Replaces: 280131) Special Order $ 64.54

350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) Appelez-nous -
350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350572 Oil, Gearcase (16 Oz.) In-Stock Immediately $ 91.61

285208 Lubricant (use Only In Brake Shoe Assembly On Roller An D Pin) Special Order $ 41.86

63580 Fabric Dispenser In-Stock Immediately $ 2.63

367031 Drain Protector Appelez-nous -
280129A Siphon Break Kit   (Replaces: 280129) Special Order $ 111.71
