SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts

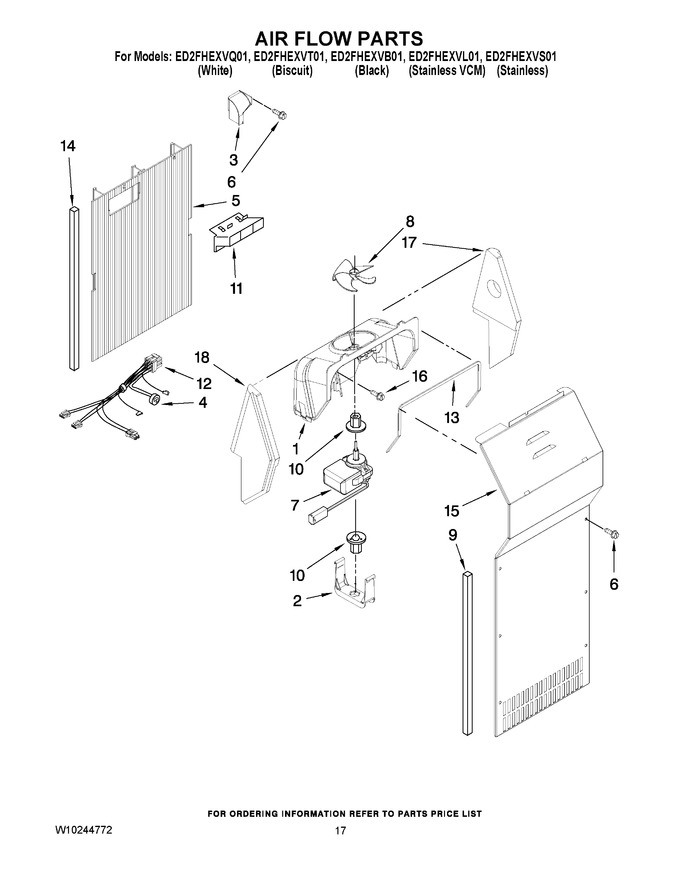

10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254898		Fan Scroll   (Replaces: 2182119)			Immediately	$ 323.27
2	2155590		Retainer Fan Motor				$ 5.83
3	W10803597		Air Scoop   (Replaces: 2161229)				$ 82.02
4	WPW10225581		Bi-metal, Defrost   (Replaces: 2319914)			Immediately	$ 50.77
5	2203591		Air Duct Freezer		Appelez-nous	-
6	4389654		Screw   (Replaces: 8281159)				$ 13.89
7	WP2315549		Fan Motor   (Replaces: 2315549)			Immediately	$ 249.86
8	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
9	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 82.80
10	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 7.77
11	2182146		Duct, Icemaker				$ 88.84
12	2310237		Harness, Fan Evaporator (includes No.4)				$ 127.52
13	WP2155789		Gasket, Fan Scroll   (Replaces: 2155788)				$ 7.79
14	4388500		Gasket   (Replaces: 2203875)				$ 90.39
15	2203840		Cover, Evaporator		Appelez-nous	-
16	WP489478		Screw   (Replaces: 489478)				$ 7.75
17	4388358		Support, R.s   (Replaces: 2203595)				$ 31.16
18	4388358		Support, L.s   (Replaces: 2203596)				$ 31.16

    View Diagram in Separate Window       Print Part List
