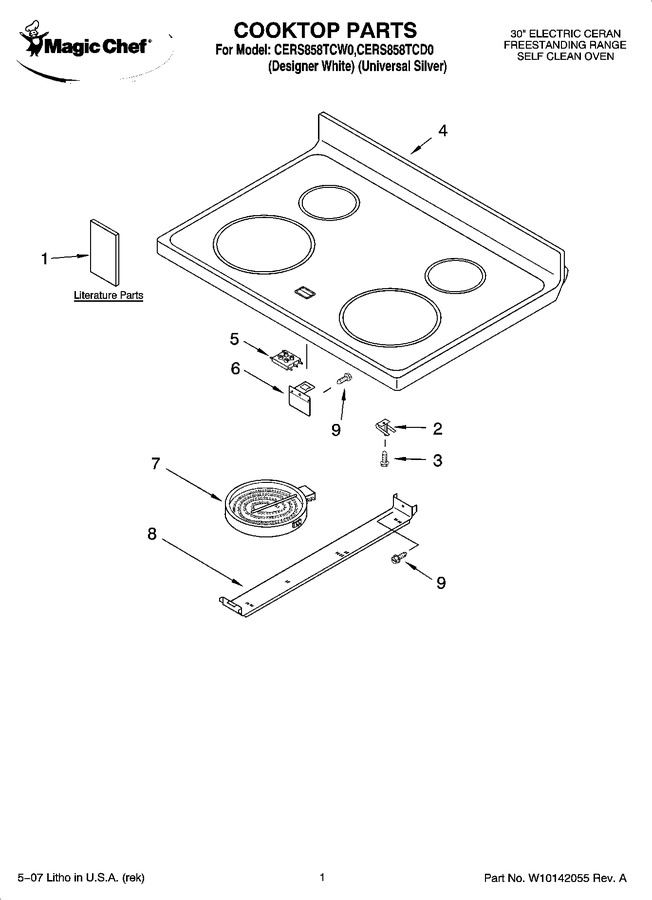

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | W10119186 | Instructions, Installation |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 1 | W10120516 | Owner`s Manual |
|
- | |||||
| 1 | W10046400 | Tech Sheet |
|
- | |||||
| 2 | W10035930 | Spring, Locator |
|
- | |||||
| 3 | WP2225929 | Start Device Combination (start Relay And Overload For Production Compressor Only) (Replaces: 2225929) |
|
Immediately | $ 134.41 | ||||
| 4 | 8523774 | Cooktop (universal Silver) |
|
- | |||||
| 4 | 9757848 | Cooktop (white (q Model)) |
|
- | |||||
| 5 | 8523739 | Light, Indicator (hot Surface) |
|
$ 120.71 | |||||
| 6 | 8523741 | Bracket, Ind Light |
|
- | |||||
| 7 | W10823698 | Element, Surface (1800 W - Rr) (Replaces: 8523696) |
|
Immediately | $ 195.12 | ||||
| 7 | W10823692 | Element, Surface (2400/1000w -lf) (Replaces: 9759351) |
|
Immediately | $ 227.59 | ||||
| 7 | W10823711 | Element, Surface (1200 W - Rf) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 8 | 3196455 | Bracket, Element |
|
- | |||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 |
